Description

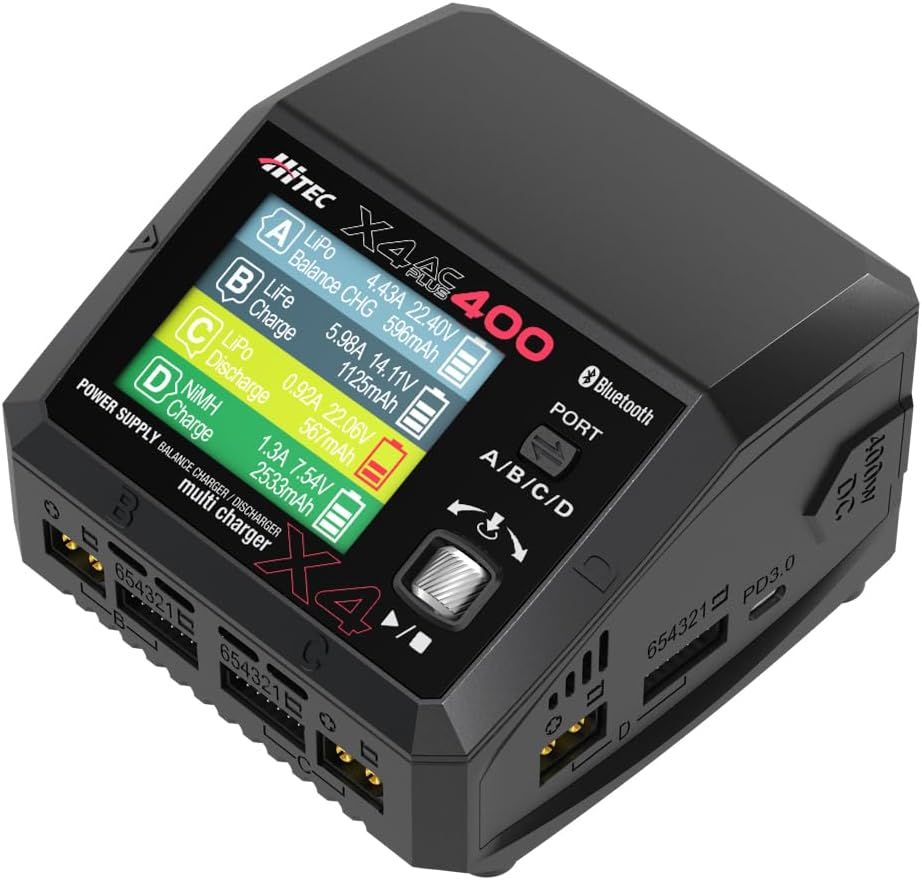

Even smaller and more efficient than previous 4-port chargers.
DC charging up to 400W, AC charging up to 200W.
Up to 100W charging is possible even with AC by using only 1 port or 2 ports.
【basic specifications】
Compatible batteries: Li-Po / Li-Fe / Li-ion / Li-HV: 1 to 6 cells, Ni-MH / Ni-CD: 2 to 15 cells, PB: 3S/6S/12S.
Input voltage: AC100V to 240V, DC10V to 30V.
Charging current: 0.1A to 10.0A (AC: Total 200W DC: Total 400W)
Balance charging current: 800mA max.
Discharge current: 0.1A to 2.0A (Main port: 5W) (Main port + Balance port: 25W (LiPo/6S)).
USB Type-C output: QC 3.0 (max. 18W) PD (max. 20W).
Dimensions and weight: 123 x 119 x 78mm, 680g.
