Description
[Specifications]
#Input voltage: Minimum 5.0V/Maximum 10.0V
#Instant maximum current: 14.0A
##Continuous maximum current: 8A
## Current by self consumption: Maximum 1mA in standby.
(when all of 7 segment LED lights maximum 10mA)
#Dimensions: 39.2x17.5x9.5mm(Excluding protrusions)
#cable length(input/Battery): 80mm
#cable length(Output/Receiver): 180cm

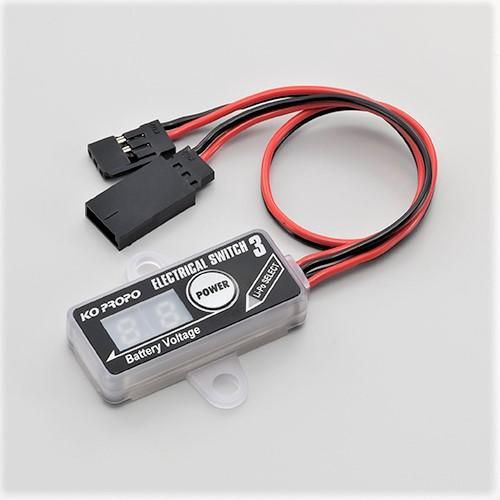

This is Electorical controled Power switch unut. The CPU remembers the current power state ON/OFF. It prevents the power supply from turning off due to poor contact of the connector by the vibration in the engine car or momentary or voltage drop at overload.
