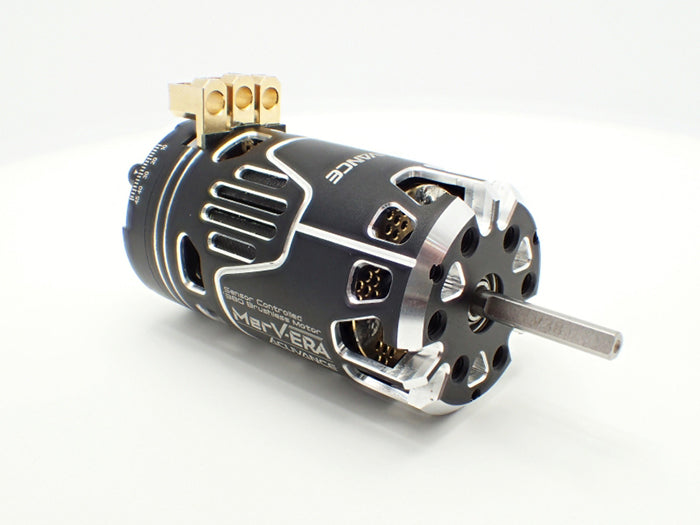

Acuvance 60744 MerV-ERA 17.5T-B Black 380 Brushless Motor

MerV-ERA: Unleash True Potential in a Compact 380 Size

Revolutionize your RC experience with the MerV-ERA, a high-output motor that defies expectations and ushers in a new era of performance. Packed with cutting-edge technology, this 380-sized motor delivers power comparable to a 540 motor, making it a game-changer for enthusiasts and professionals alike.

---

Key Features

1. High Output Performance
The MerV-ERA shatters the limitations of traditional 380 motors, delivering unmatched torque and rotation speed. Its compact design houses advanced technology, offering performance on par with larger 540 motors.

2. [M・F・C・S] System
Equipped with the innovative M・F・C・S system (also used in AGILE and FLEDGE), the MerV-ERA allows you to customize motor characteristics without compromising performance. Switch between rotation type and torque type effortlessly, even within the compact 380 frame.

Optional Accessories:

• LV45 Torque Type Rotor (OP-15149)

• MerV-ERA Dedicated Rotor Replacement Tool (OP-15148)

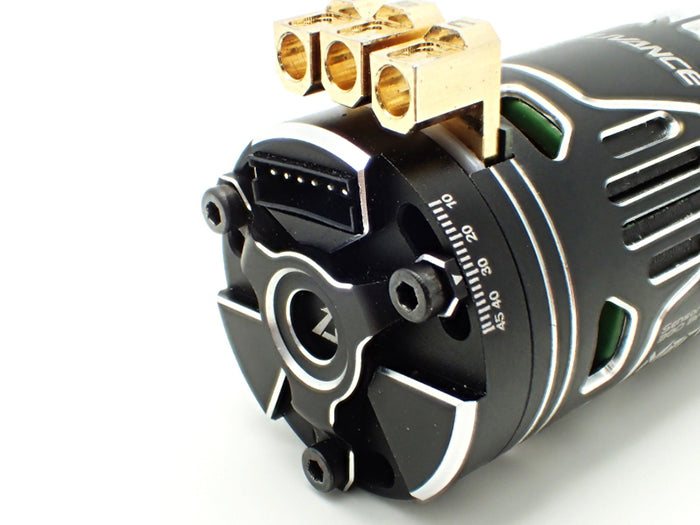

3. Variable Advance System
For the first time in a 380 motor, the MerV-ERA features a variable advance system. Easily adjust the motor’s characteristics to suit your needs, whether you prioritize torque or rotation.

4. Tri-Blade Cooling System
The refined Tri-Blade air-cooled fan ensures superior cooling performance, keeping your motor running efficiently even under intense conditions.

5. Vibration-Reducing Structure
A high-rigidity alloy plate inside the housing minimizes vibrations, enhancing rotation efficiency and overall stability.

6. Direct Power Terminal System
The MerV-ERA incorporates FLEDGE’s industry-first direct power terminal system, ensuring efficient power transmission. The horizontal terminal orientation also allows for direct cable attachment via soldering.

7. Torque Level/Torque End Mode Compatibility
Exclusive to MerV-ERA, FLEDGE, and AGILE users, this feature lets you adjust motor torque levels based on road conditions and vehicle type, offering unparalleled control.

8. 540 Size Compatibility
With the optional [Multi-angle 540-380 Conversion Plate], the MerV-ERA can be mounted on motor mounts designed for 540-sized motors, expanding its versatility.

---

Specifications

Model	10.5T	13.5T	17.5T
Input Voltage	4.2V – 8.6V
KV (rpm/V)*	5,260	4,150	3,250
Power Consumption (W)*	250	190	130
Efficiency (%)*	92	92	92

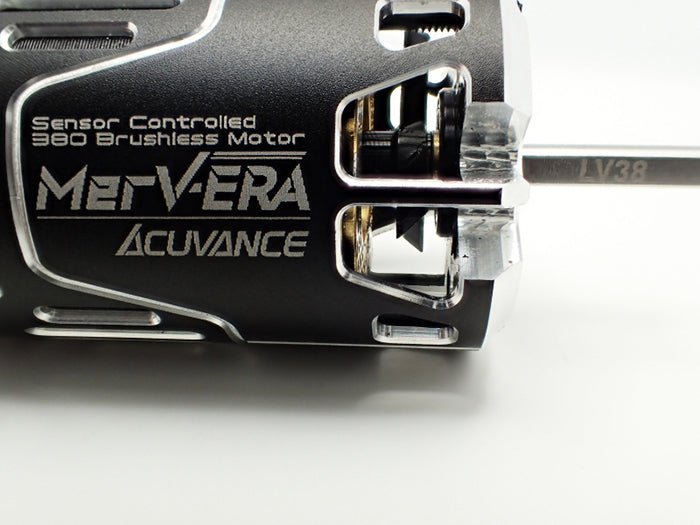

Standard Rotor	Sintered (Neodymium Magnet) LV38
Winding Method	Star Winding
Weight / Length	92g / 52mm

*Measured at 7.2V input, default advance angle 30°

---

Included Accessories

• φ3mm male connector x 3 (for ESC connection)
  Note: These connectors are designed for a secure fit to prevent loosening during use. Optional replacements (OP-15144) are also available.

---

Important Notes

• Handle with Care: The aluminum case may have sharp edges due to the cutting process. Exercise caution during installation or layout changes.

---

Upgrade Your RC Build with MerV-ERA
Experience the perfect blend of power, precision, and versatility in a compact 380 motor. Whether you’re racing or customizing, the MerV-ERA is built to exceed expectations.
