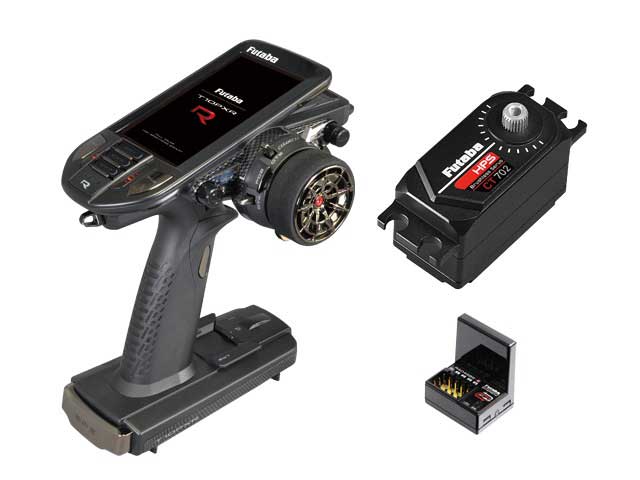

This kit comes with Futaba 10PXR Transmitter, Futaba R404SBS-E Receiver x1, PLUS Futaba CT702 Servo x 1.
Ideal for RC Touring Car Set Up
~~~~
High-end model equipped with maximum speed response functionality. The T10PX, beloved by many top drivers, finally arrives with an "R" designation. The "T10PXR," pursued in meticulous detail, symbolizes evolution to compete on a new stage.
★ The T10PXR is a transmitter compatible with "F-4G," "T-FHSS SR," "T-FHSS," "S-FHSS," and "MINI-Z."
★ The R404SBS and R404SBS-E are receivers compatible with "F-4G."
Functions & Specifications:
Setup Menu:
-
Receiver Settings (Compatible with F-4G/T-FHSS SR/T-FHSS/FHSS/MINI-Z EVO/MINI-Z EVO 2/MINI-Z FHSS) - Refer to compatible receiver list for each system.
-
Acceleration
-
Condition
-
Idle Up
-
Channel Limiter (Limits maximum servo travel)
-
Channel Setting (Assigns steering or throttle to any channel)
-
Throttle Mode
-
Sub-Trim
-
Trim/Dial Settings
-
Switch Settings
-
End Point, Reverse, D/R, ATL, Fail Safe, Servo View
Model Menu:
-
Model Select, Model Copy
-
Model Name
-
Model Type
-
Data Reset
Mixing Menu:
-
Steering Mixing
-
Brake Mixing
-
Gyro Mixing
-
4WS Mixing
-
Dual ESC
-
CPS Mixing (1,2,3) – *Allows LED flash pattern settings when using CPS-1 (optional).*
-
Tank Mixing – For tracked vehicles like tanks.
-
Program Mixing (1,2,3,4) – Mixing master can be set to telemetry.
-
Tilt Mixing – Effective for boats.
-
Winch Mixing – Effective for crawlers.
Racing Menu:
-
ST Trim Memory (New Feature) – Instantly moves steering trim to a preset position. Makes trim adjustments easier during long races like engine car events.
-
Curve (EXP)
-
Speed – Steering and throttle can be set individually. Throttle side also features "Curve" mode effective for drag cars.
-
Traction Control
-
Feeling – Adds a milder feel for easier control when response is too sensitive.
-
A.B.S
-
Start
-
Engine Cut
-
Telemetry Menu, Sensor List
-
Drag Race (Trans Brake) – Mixing effective for drag racing.
Accessory Menu:
-
Timer, Lap List
-
Home/ES1/ES2/ES3 Button Settings – Assign desired functions to the four buttons on the front of the display.
-
Home Screen Settings – Can be changed to Servo View, Telemetry View, car photo, etc.
-
Index Table – Displays index table for DD(PAN) cars.
-
Gear Ratio Table
-
S.BUS Servo – Allows S.BUS servo settings.
-
MC (ESC) Link, Gyro Link – Allows ESC and gyro settings.
System Menu:
-
ST Angle Check Function (New Feature) – Used as a reference for maximum steering wheel angle when adjusting travel.
-
Display Settings – Backlight, touch panel calibration, etc.
-
Voice – Adjust operation sounds for switches, alarms, telemetry guide volume.
-
Battery Settings – Sets correct battery alarm voltage based on battery type.
-
Adjuster – For steering wheel and throttle trigger correction.
-
Total Timer
-
Receiver Update, Servo Update – Update via the transmitter.
-
System Information
Included Accessories:
-
Transmitter (LiFe) Battery FT2F1100B × 1 piece (Pre-installed at shipping, connector disconnected) – Optional LT2F2000B LiPo battery also usable.
-
Charger LBC-34D P × 1 piece
-
ASA (Adjustable Steering Angle Adapter) × 1 piece
-
Wheel Adapter 32° × 1 piece
-
APA (Wheel Position Change Adapter) S/M × 1 each (Longest L size sold separately)
-
TFT (Two-Finger Throttle Lever) × 1 piece
-
Brake Lever L × 1 piece
-
Angle Spacer 5° × 1 piece (10° sold separately)
-
Throttle Stroke Reduction Spacers 5%, 10%, 15%, 20% × 1 each
-
Large Diameter Steering Wheel × 1 piece
-
Li-Po Spacer × 1 piece (For LT2F2000B positioning)
-
Trigger Guard R/L × 1 each
-
Grip Rubber S × 1 piece (M size pre-installed at shipping, L size sold separately)
-
Blind Paddle × 2 pieces
-
Mounting Screw Set × 1 set
-
Hex Wrenches 1.3mm, 1.5mm, 2mm, 2.5mm × 1 each
-
Wheel Springs Soft/Normal/Hard × 1 each
-
Trigger Springs Normal/Hard × 1 each
