Shrink your airborne electronics with Futaba's featherweight R3206SBM micro receiver for park flyers and indoor electric models. This tiny T-FHSS unit measures just 20x10x3mm and operates from 3.2V to 8.4V, perfect for ultra-light builds where every gram matters.
Key Features
-
2.4GHz T-FHSS Air-mono protocol (telemetry not supported)
-
S.BUS + 6-channel capability (S.BUS + 5 additional channels)
-
Ultra-compact dimensions: 20.0 × 10.0 × 3.0 mm
-
Wide voltage range: 3.2V to 8.4V DC
-
Battery F/S voltage: Set from transmitter
-
Designed for park fly, indoor, and small electric motors
-
Requires fine soldering wiring and heat shrink tube installation
Why Choose This
Fit reliable control into the tightest micro airframes with this incredibly small receiver. You get a 3mm thin profile, wide voltage tolerance, and S.BUS output for minimalist wiring. Perfect for indoor 3D, micro park flyers, and lightweight builds where space is extremely limited.
Product Information
-

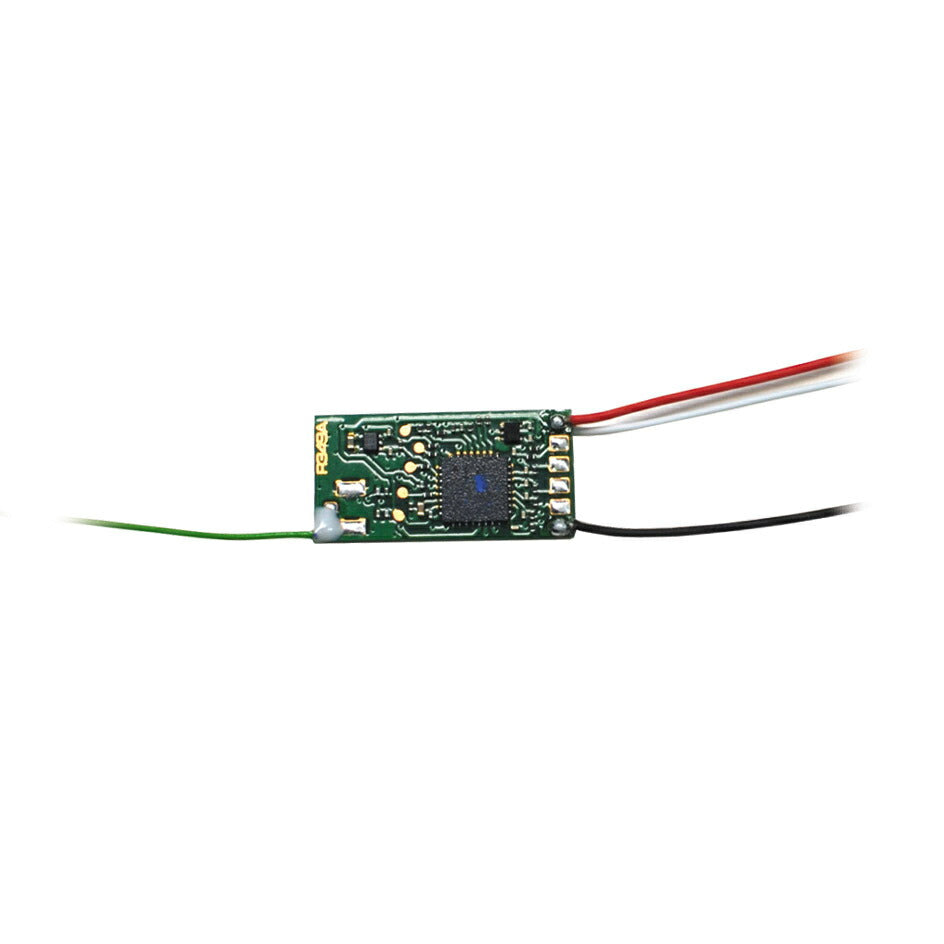

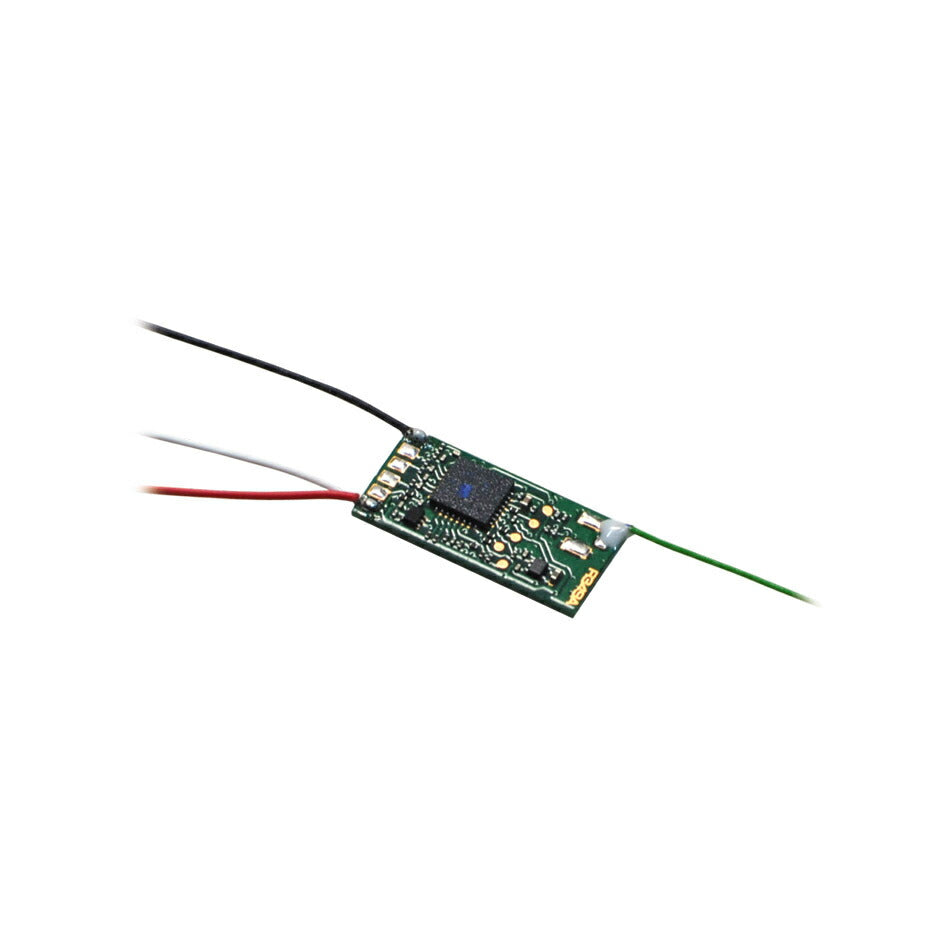

Product: 031366 R3206SBM Micro Receiver
-
Manufacturer: Futaba
-
Part number: 00107172-3
-
Type: T-FHSS Air-mono receiver (telemetry not supported)
-
Channels: S.BUS + 6 (requires soldering for PWM use)
-
Dimensions: 20.0 × 10.0 × 3.0 mm
-
Voltage range: 3.2V to 8.4V DC
-
Battery F/S voltage: Set from transmitter
-
Installation: Requires fine soldering wiring and heat shrink tube installation
-
For S.BUS use: Solder S.BUS line of S.BUS equipment to R3206SBM S.BUS wiring
-
For PWM use: Solder signal wires directly to board channels 1-6
-
Power wiring: Must be soldered to each device
-
Does not include fuel, batteries, charger, paint, glue, tools
This Futaba R3206SBM micro receiver delivers full-range control for your smallest aircraft. At just 20x10x3mm and 3.2-8.4V operation, this T-FHSS unit fits where standard receivers cannot, though fine soldering skills are required for installation.
