Futaba 036156 TM-18＋R9001SB

This 920MHz module attaches to your transmitter and features a backup function. If your existing radio link becomes unusable during flight, it automatically switches to the 920MHz band.

Product Highlights

When used alongside your 2.4GHz system, it enables safer and more secure flight operations.

Features

• Utilizes 920MHz band Spread Spectrum system.

• Prevents interference from other AdRCSS 920MHz systems using the transmitter's unique ID code.

• Fail-safe function (Channel 3 only).

Recommendations

• Use the AdRCSS 920MHz system as a backup for your 2.4GHz system with receivers equipped with FDLS-1, DLPH-1, DLPH-2, or a Dual Rx Link system (e.g., R7308SB, R7208SB).

*Note: Due to differences in communication speed between systems, there might be slight variations in operation after switching. This is normal and not a malfunction.

Compatible Transmitters
T32MZ WC, T32MZ, T26SZ, T16IZ, T16IZS, *T16SZ, *T12K

*T16SZ and T12K require a separate power source as their CRFS connector does not supply power.

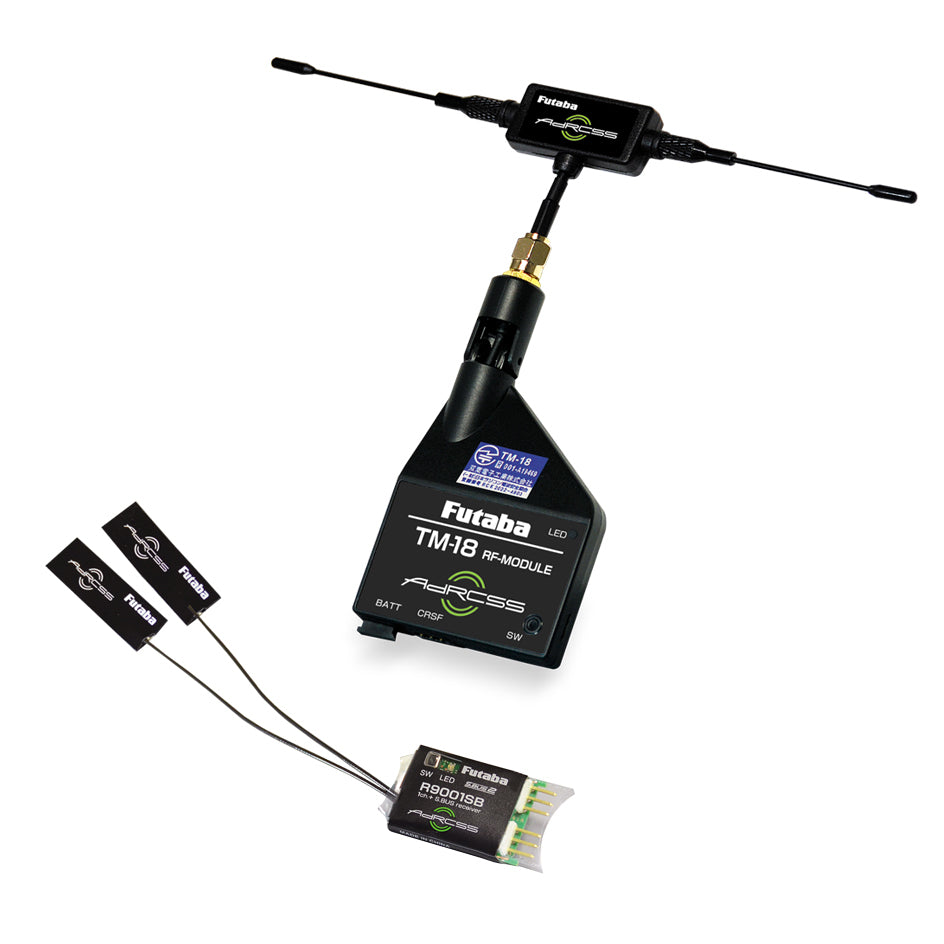

Included Components

• TM-18 RF Module

• R9001SB

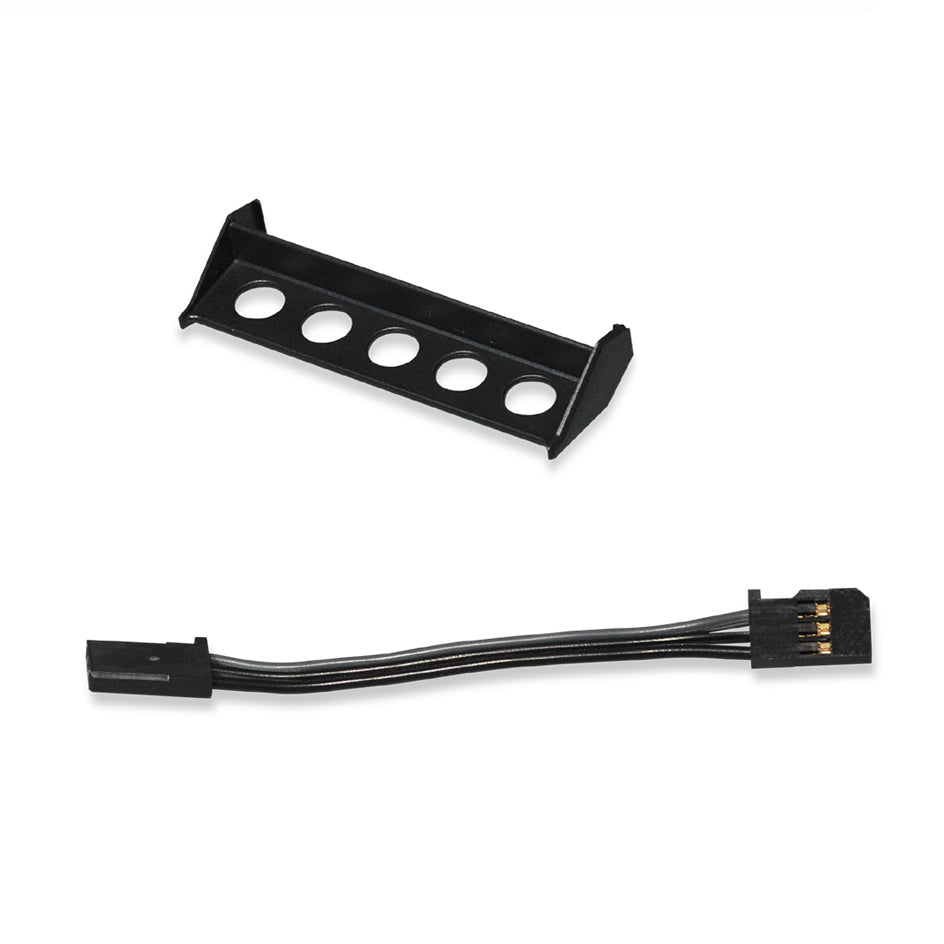

• CRSF Signal Connection Cable

• Double-sided Tape

• Mounting Bracket for T32MZ

Specifications

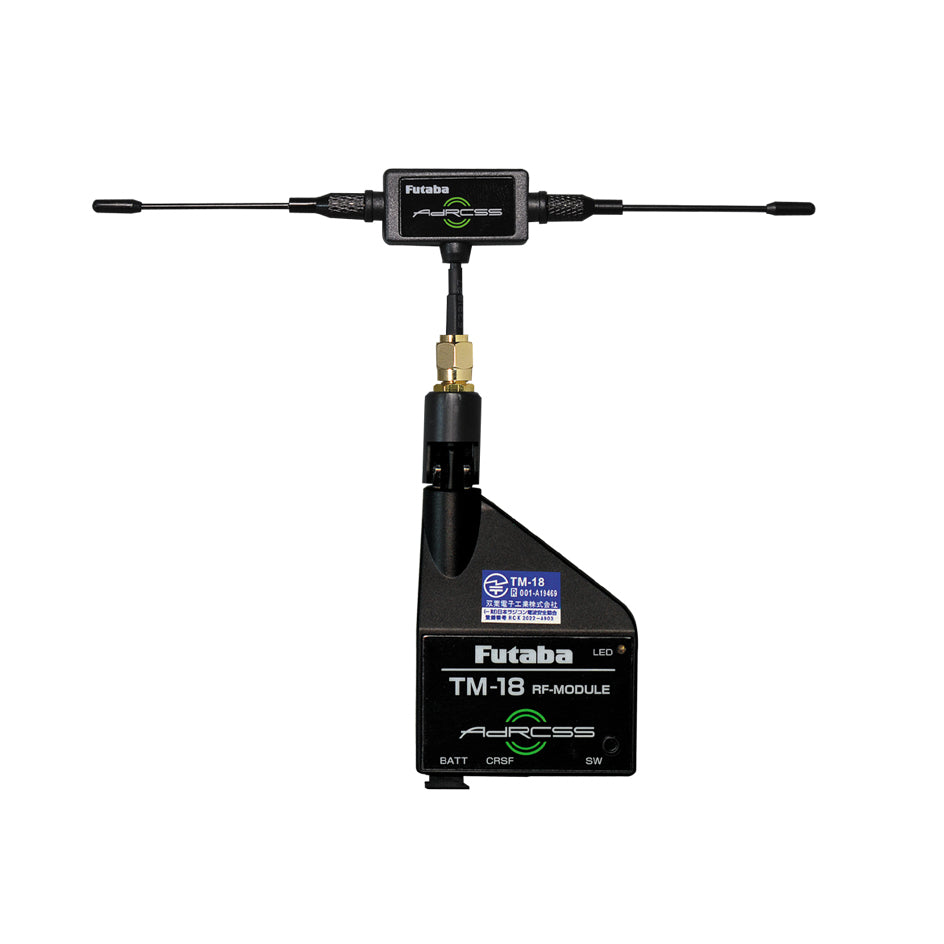

TM-18 RF Module

• AdRCSS 920MHz System / Max. 16Ch (depending on transmitter settings)

• Communication Method: One-way (Telemetry not supported)

• Can be used simultaneously with all Futaba 2.4GHz systems (FASSTest 18ch/12ch, FASST MULTI/7ch, S-FHSS, T-FHSS)

• Current Consumption: 36mA (max.)

• Equipped with Power-down mode (Low Power mode)

Usage Instructions by Transmitter

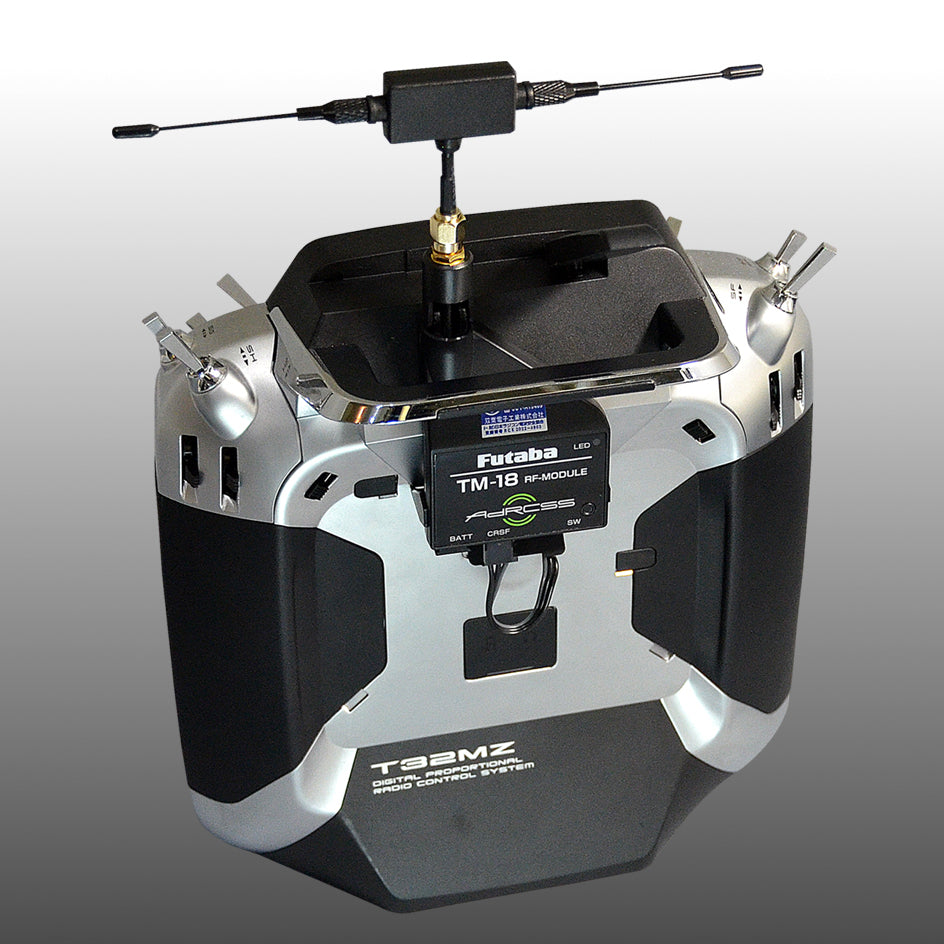

• T32MZ WC, T32MZ, T26SZ: Can be used by connecting to the CRSF connector.

• T16IZ, T12K: Please turn CRSF mode ON. S.BUS servo settings cannot be configured while in this mode.

*Please note: Use in other countries may be restricted depending on local radio wave regulations.
