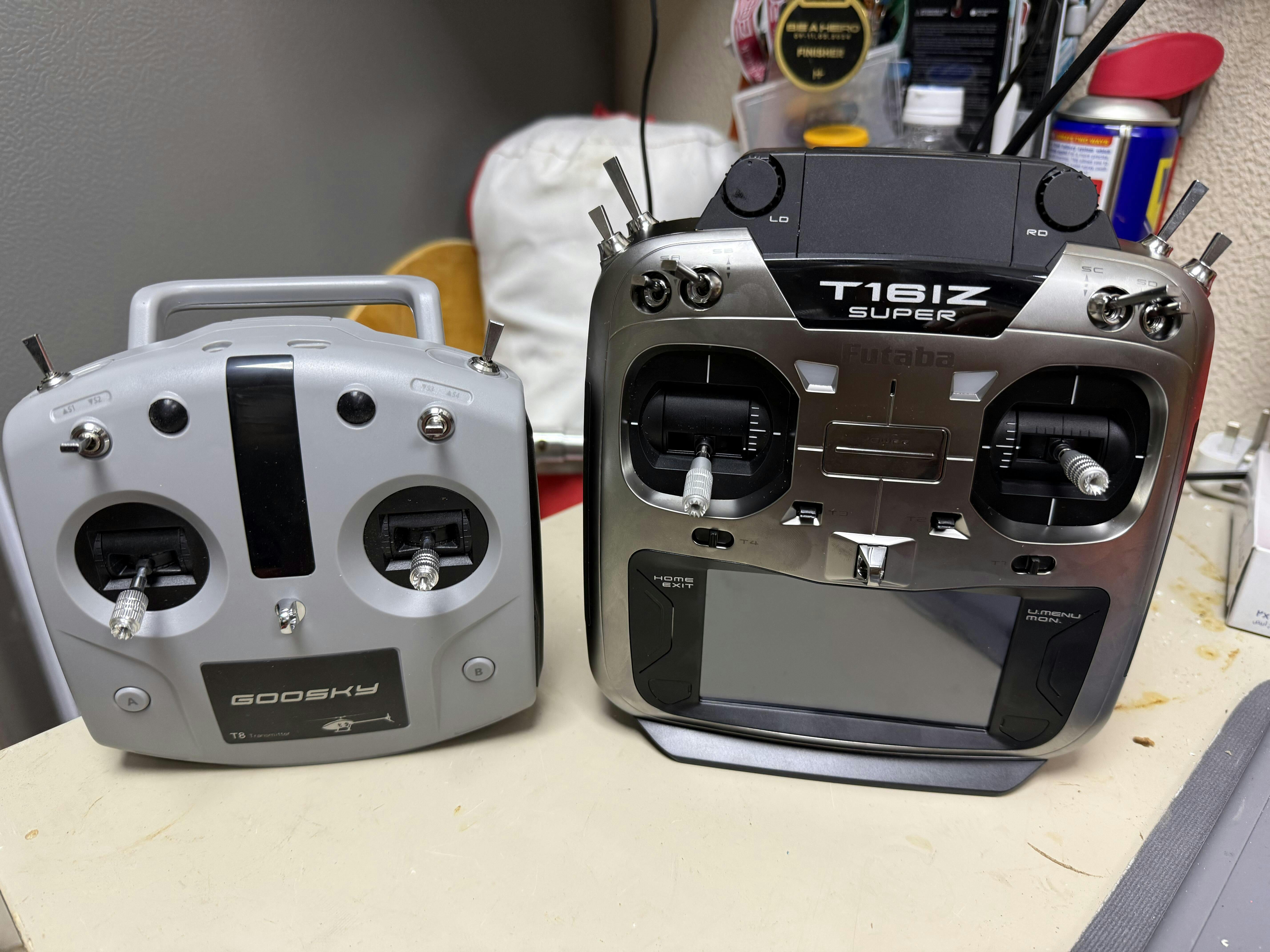

Futaba 036569 T16IZ Super for Helicopter Transmitter Only (00008665-3)

The birth of a next-generation radio that goes beyond the boundaries of its class

The T16IZ, loved by many enthusiasts, has undergone a minor change! It has been given a dark pearl plating to give it an even more luxurious feel. By using the optional SBS-01ML, it is now compatible with the drone flight controller Pixhawk.

The T16IZ, loved by many enthusiasts, has undergone a minor change!

It has a dark pearl plating and is equipped with all the necessary functions in a slim body that exudes luxury.

By using the optional SBS-01ML, you can monitor the status of the drone flight controller Pixhawk.

The T16IZ Super is a product that allows you to use each function at a reasonable price and at the same level as a higher-end model.

●2.4GHz FASSTest, FASST-Multi, FASST-7ch, S-FHSS, T-FHSS Air compatible

●4.3-inch color TFT-LCD: With a touch panel, you can perform intuitive operation.

●Edit button: You can switch to the home screen or user menu screen using the edit buttons on the left and right.

●Volume knob, slide lever: Equipped with volume knobs on both sides of the front, and slide levers on the left and right back of the shoulder.

●Handle with flange: By extending the flange on the back of the handle, you can change the angle when laying the main unit down.

●Equipped with microSD card slot (card sold separately) and USB connector (Type C) for connecting to a simulator

●Pixhawk® parameters can be monitored with the transmitter.

You can display data from a drone flight controller (Pixhawak) using the optional SBS-01ML (sold separately).

Functions and specifications

Common functions (airplane/glider/helicopter/multicopter)

●Compatible with 2.4GHz FASSTest, FASST-Multi, FASST-7ch, S-FHSS, T-FHSS Air formats
For a list of receivers compatible with each format, please see here.

●Control up to 18ch (16+2ch)

●Supports telemetry function (valid in FASSTest and T-FHSS Air modes):
The connection status of the two-way communication unit (sold separately) is clearly displayed at a glance, and you can check the rotation speed, aircraft position, speed, etc.

●Telemetry data voice readout function

●USB-chargeable lithium polymer battery LT2F2000B (2,000mAh)

●Telemetry log function

●Model memory (for 30 aircraft)

●Condition selection (8 ways)

●microSD card slot (card sold separately)

●USB connector for connecting simulator

●Model menu (airplane/helicopter/glider/multicopter):
Easy-to-understand selection of each model type.

●S.BUS servo programming function

●User name/model name (15 characters):
You can change the name on the model selection screen, allowing for reliable switching. You can also import model data from older models (T18SZ, T16SZ, FX-36, FX-32).

●DLPH-2 operation mode setting function (V.4.0 and later):
You can set dual receiver/single receiver mode switching, output channel mode switching, etc.

●Receiver output port setting function (V4.0 and later):
You can easily set the output mode without having to set it by pressing buttons on the receiver side.

●Switch function quick assign function (V4.0 and later):
You can set the switch hardware by simply operating the switch of the assigned target.

●Japanese/English, partially supported in 7 other languages

●Program mixing (10 systems)

●Servo delay

●AUX function name change

●Earphone jack, speaker

●Stick mode switching possible

●Stick alarm, digital trim, sub trim, reverse, fail safe, end point (ATV), AFR (D/R), data reset, up/down timer, trainer

[For helicopters only]

●Throttle cut

●Idle down

●Swash setting

●Swash ring

●Pitch curve

●Throttle curve

●Throttle limiter

●Acceleration

●Throttle hold

●Swash mixing

●Throttle mixing

●Pitch → Needle

●Pitch → Rudder

●3-axis gyro parameter setting function (To support CGY770R, T16IZ Super software needs to be updated to V5.0 or later)

●Governor setting

●Gyro programming
