Futaba 106996-3 R3008SB S.BUS2 compatible HV 2.4GHz 10ch receiver

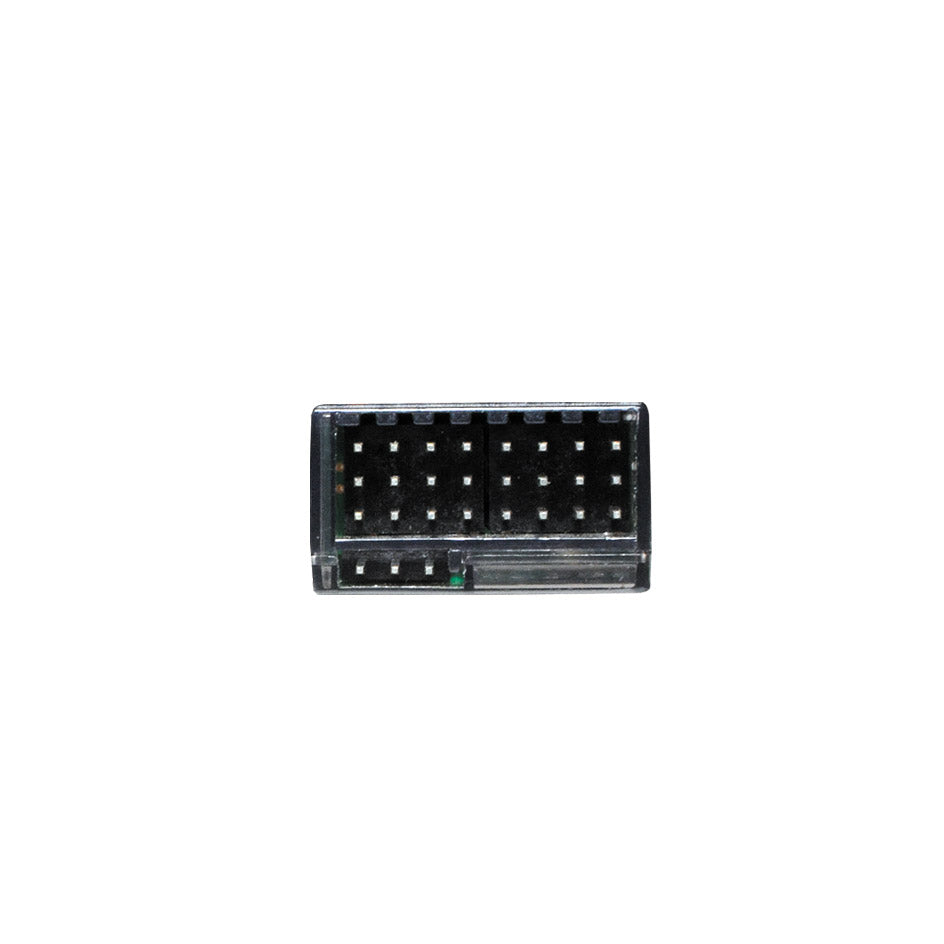

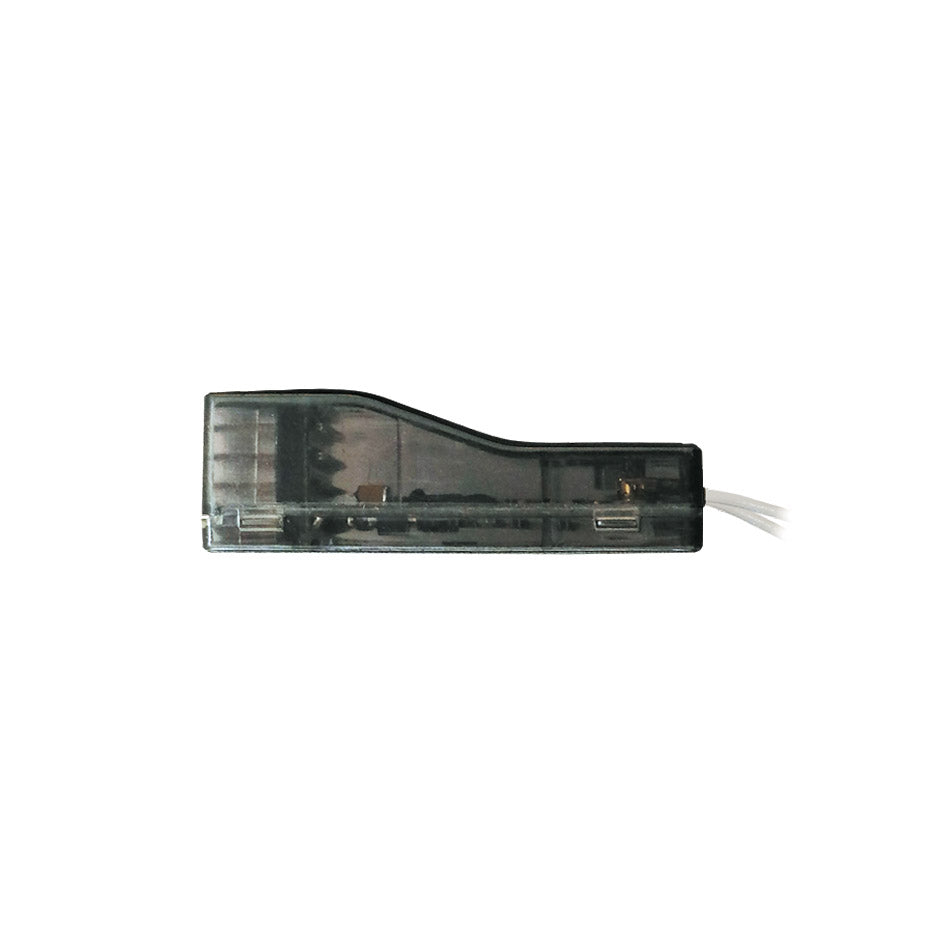

R3008SB Receiver

2.4GHz 10ch Receiver (10J only) S.BUS2
Input/Output / S.BUS Output + Conventional System Output (CH1-8)

■ 12,000 (List price excluding tax)

■ <026416>

2.4GHz T-FHSS
AIR dimensions 24.9×47.3×14.3mm
weight 10.1g
frequency 2.4GHZ T-FHSS AIR (bidirectional receiver)
applications Empty
channel S.BUS2 I/O/S. This is a T-FHSS AIR system that supports two-way communication with BUS output + conventional system output (ch1-8) power
supply: 4.8 ~ 7.4V (batteries cannot be used) standard
connector (external voltage port: 0 ~ 70VDC) 10J

only (telemetry only).
* It is not compatible with the FASST method.
*The 10J transmitter can be switched on the transmitter side to use an empty S-FHSS receiver, but telemetry does not work.
