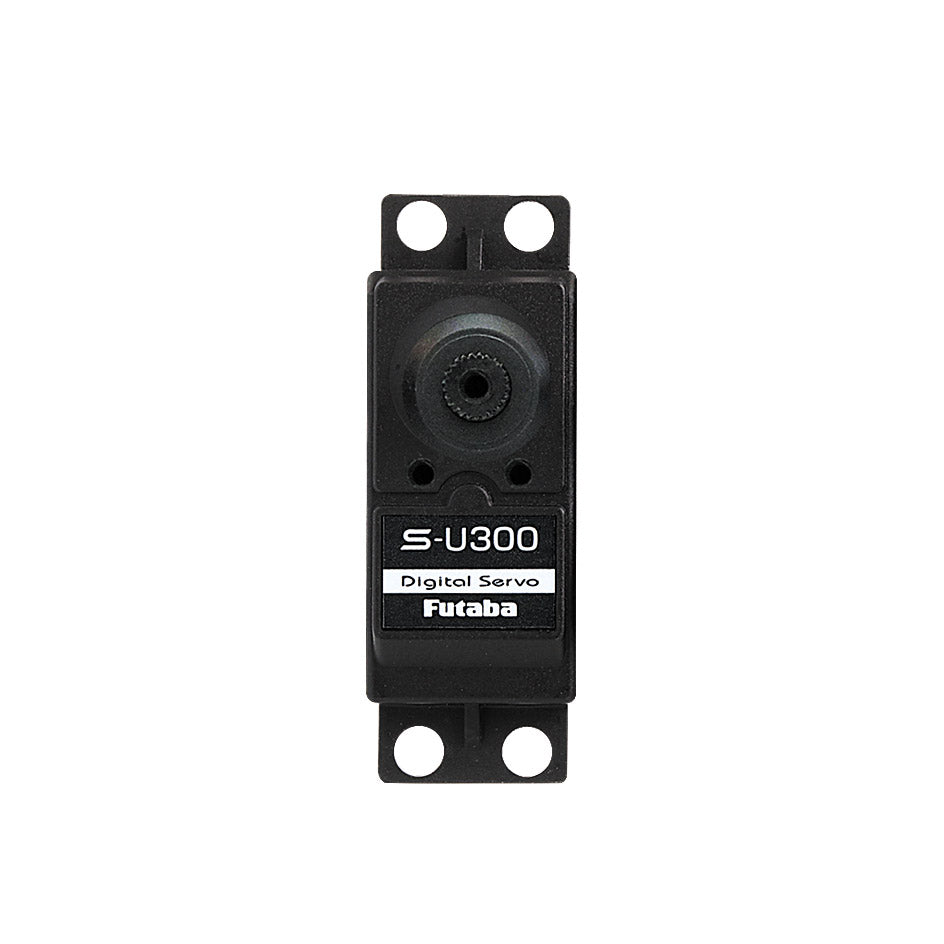

Futaba 107199-1 S-U300 Standard S.BUS Servo

It is a standard servo that uses the S.BUS method for empty and car.

・Standard servo
for emptying, all-resin gear
, S.BUS system

, speed: 0.19sec/60°(6.0V) / 0.23sec/60°(4.8V)・
Torque: 4.1kgf・cm(6.0V) / 3.2kgf・cm( 4.8V)

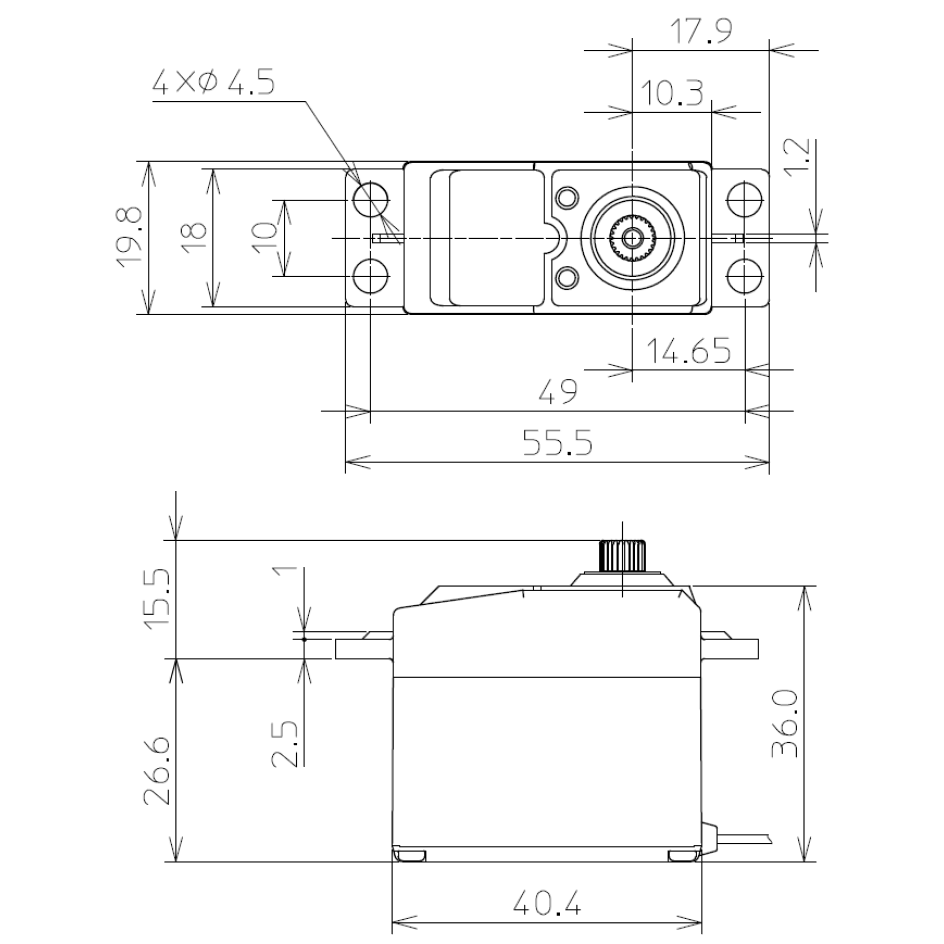

・Dimensions/Weight: 40.4×19.8×36.0mm / 36g

* Power supply: 4.8-6.0V

[Replacement parts list]

Gear Set : 301285

Case Set : 303098

Horn : Φ6

Horn Mounting Screws: 300783

Rubber Bushing : 301605

Servo fixing screws: 300752

Eyelet : 300769
