Futaba 107374-3 HPS-AA702 Aerospace HPS Servo Series
Futaba 107374-3 HPS-AA702 Aerospace HPS Servo Series
Futaba 107374-3 HPS-AA702 Aerospace HPS Servo Series
Futaba 107374-3 HPS-AA702 Aerospace HPS Servo Series
Roll over image to zoom in Click on image to zoom
Futaba 107374-3 HPS-AA702 Aerospace HPS Servo SeriesFutaba 107374-3 HPS-AA702 Aerospace HPS Servo SeriesFutaba 107374-3 HPS-AA702 Aerospace HPS Servo SeriesFutaba 107374-3 HPS-AA702 Aerospace HPS Servo Series

Futaba 107374-3 HPS-AA702 Aerospace HPS Servo Series

Save 15%
FutabaFutaba 107374-3　|　4513886037641
Price:
¥25,245 ¥29,700
Stock:
Available on back order. Generally, we can ship your order within 2-5 working days. For Pre-Order items, please refer to description for release dates.

Description

This is a servo for large airplanes of the HPBLS series that achieves amazing torque and low power consumption. The HPS series not only ensures surprising neutral accuracy and reliable torque, but also dispels the relationship between speed power and power consumption, which has been considered to be a dichotomy until now, and realizes reliable power with low power consumption. The new HPS motor and high-frequency control have improved response.

This is a servo for large airplanes of the HPBLS series that achieves amazing torque and low power consumption.

The HPS series not only ensures surprising neutral accuracy and reliable torque, but also

Dispelling the relationship between speed power and power consumption, which has been considered to be a dichotomy until now,

Reliable power is achieved with low power consumption.

The new HPS motor and high-frequency control have improved response. ・For large airplanes (aileron recommended)


・Metal 1-3 stage
gears, high-strength metal end-stage gears
, upper/middle/lower aluminum case
, S.BUS system

- New control board

・High frequency control


・Speed: 0.075sec/60° (7.4V) / 0.08sec/60° (6.6V)
・Torque: 41kgf・cm (7.4V) / 37kgf・cm (6.6V)

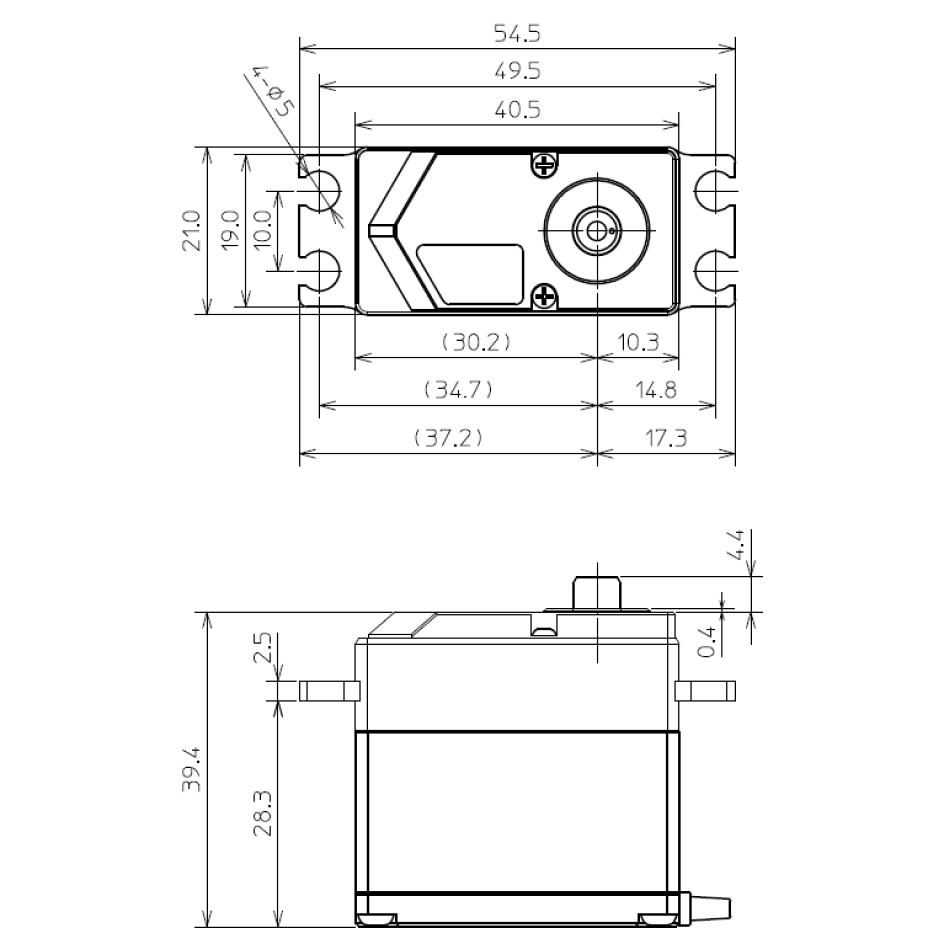

・Dimensions/Weight: 40.5×21.0×39.4mm / 80g


* The HPS-AA702 requires a large current instantaneously in order to achieve both high output and responsiveness. In the case of intense acro flights, the power supply line may become unstable in rare cases, so when connecting one or more servos in the S.BUS system, please use a receiver capacitor (16V1800μF) for safety. Please refer to the instruction manual for connection.

* Batteries and BEC cannot be used.

[Replacement parts list]

Case Set : 308895

Horn : Φ6

Horn Mounting Screws: 306235

Rubber Bush : 302787

Servo fixing screws: 300752

Eyelet : 302770
