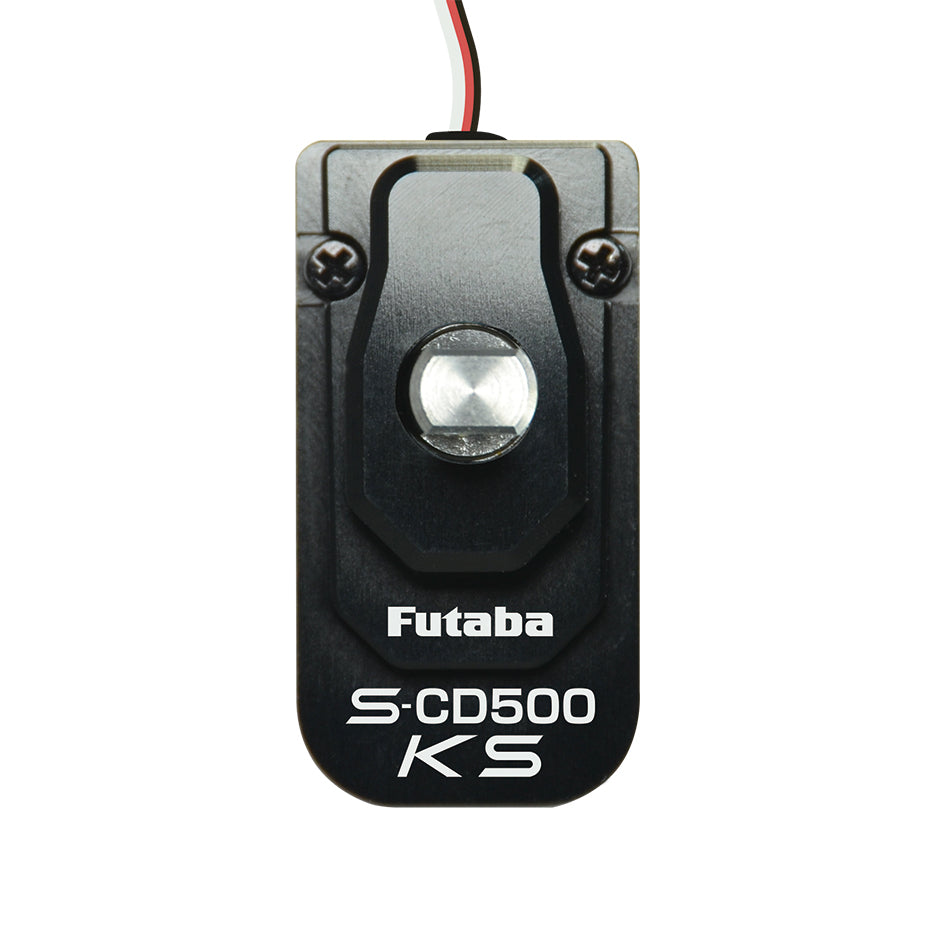

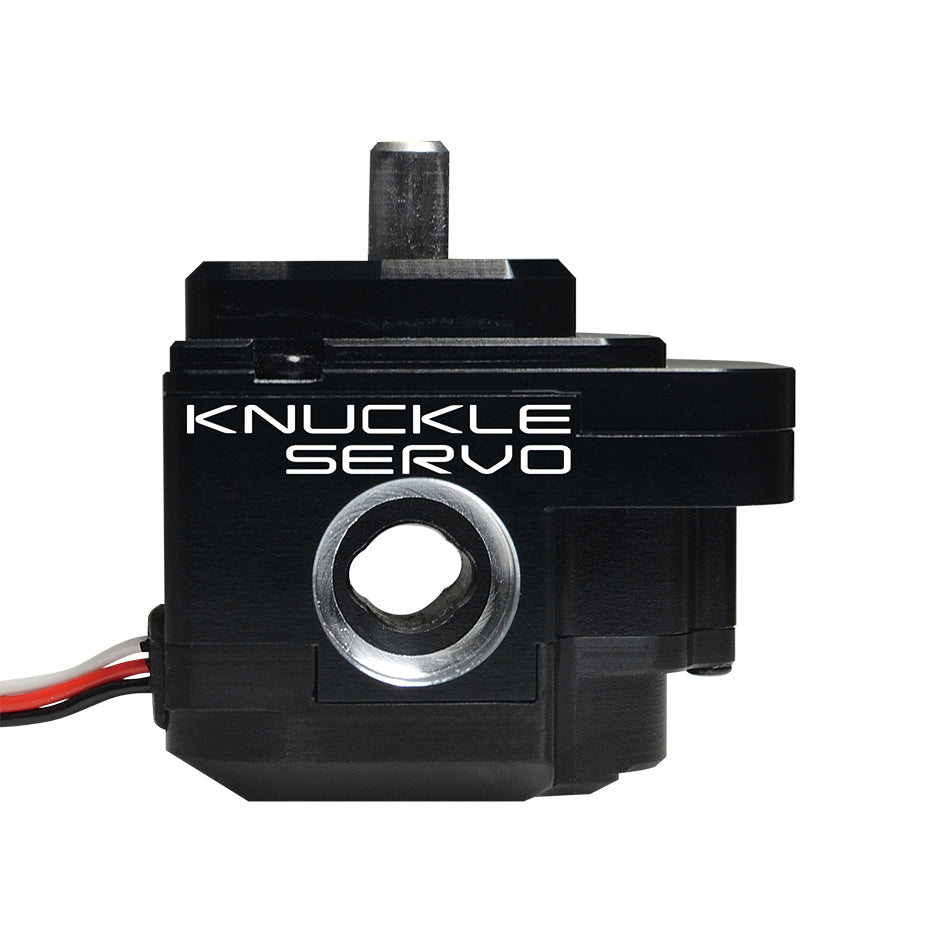

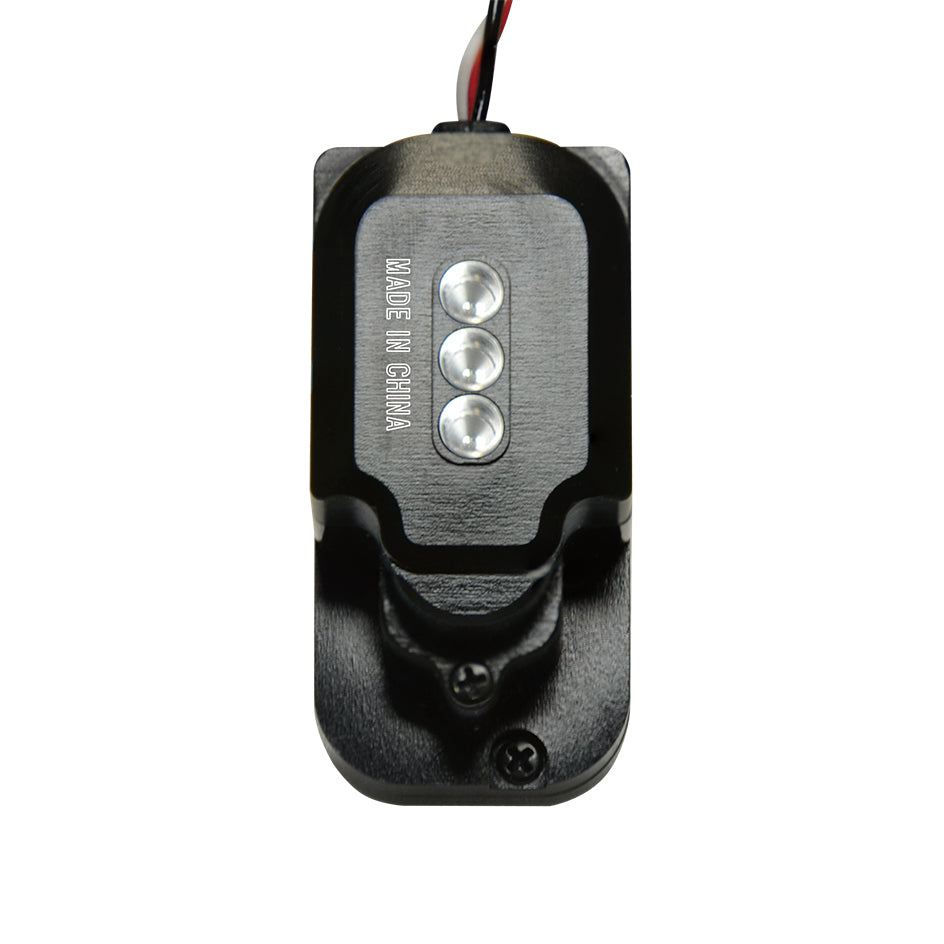

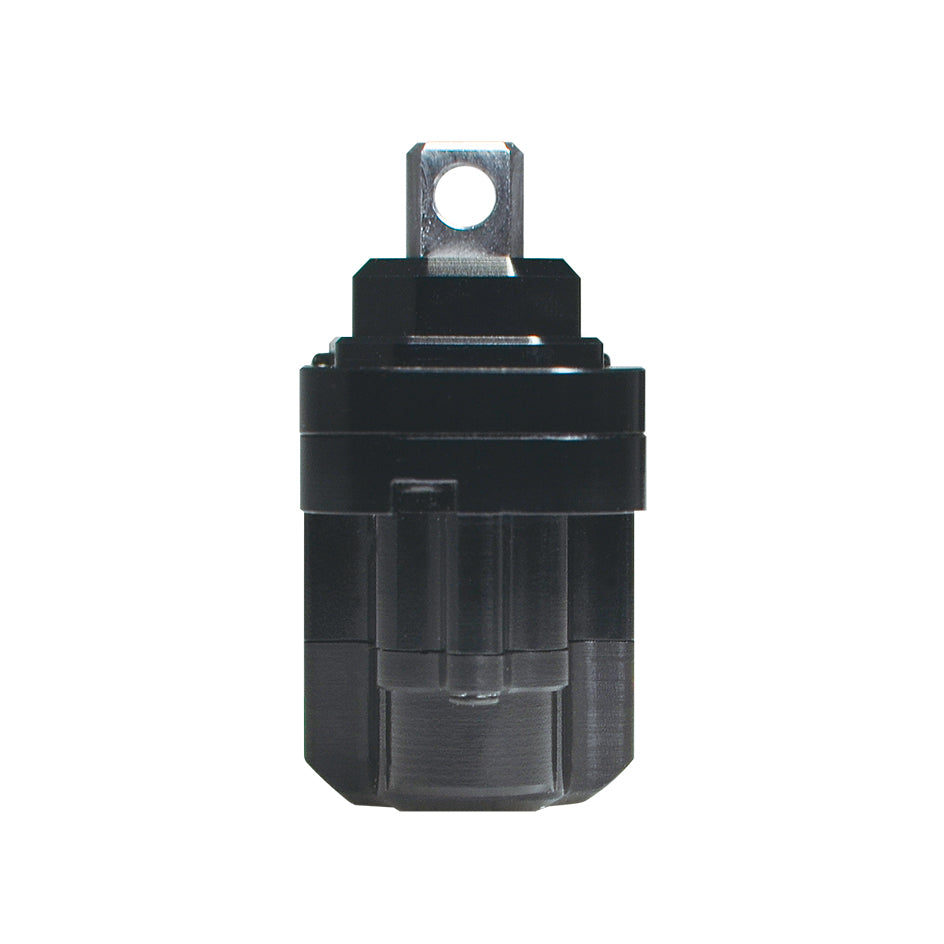

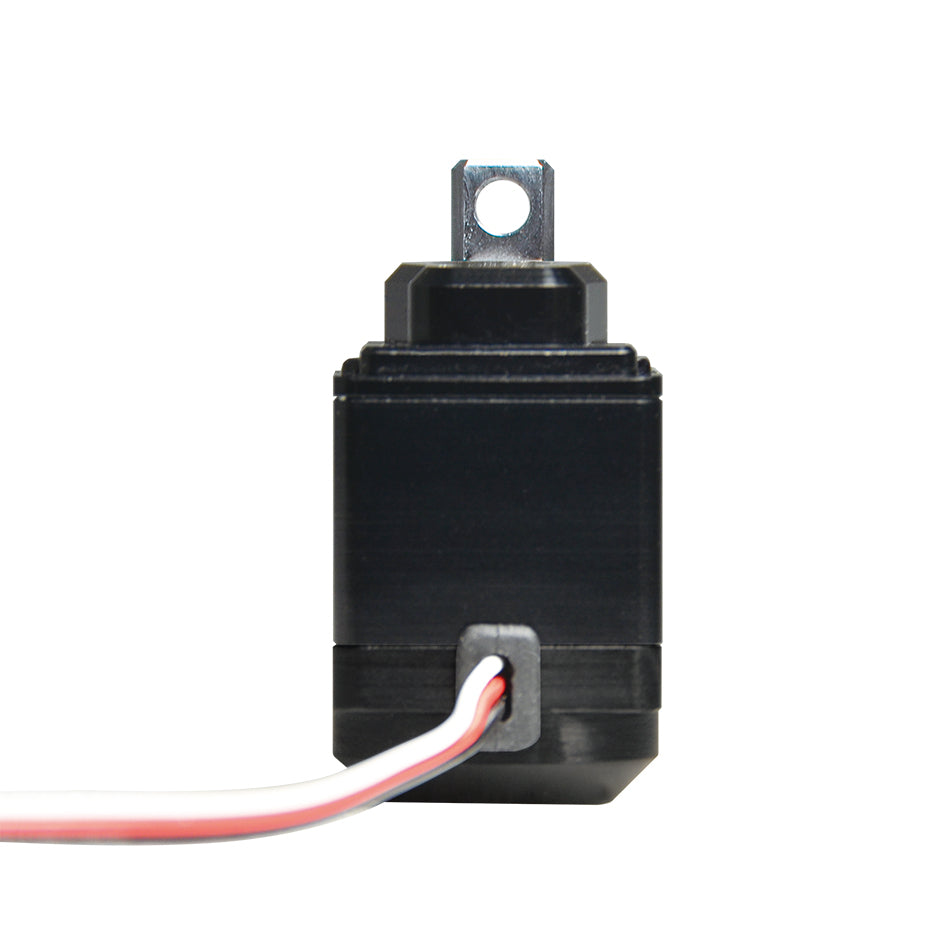

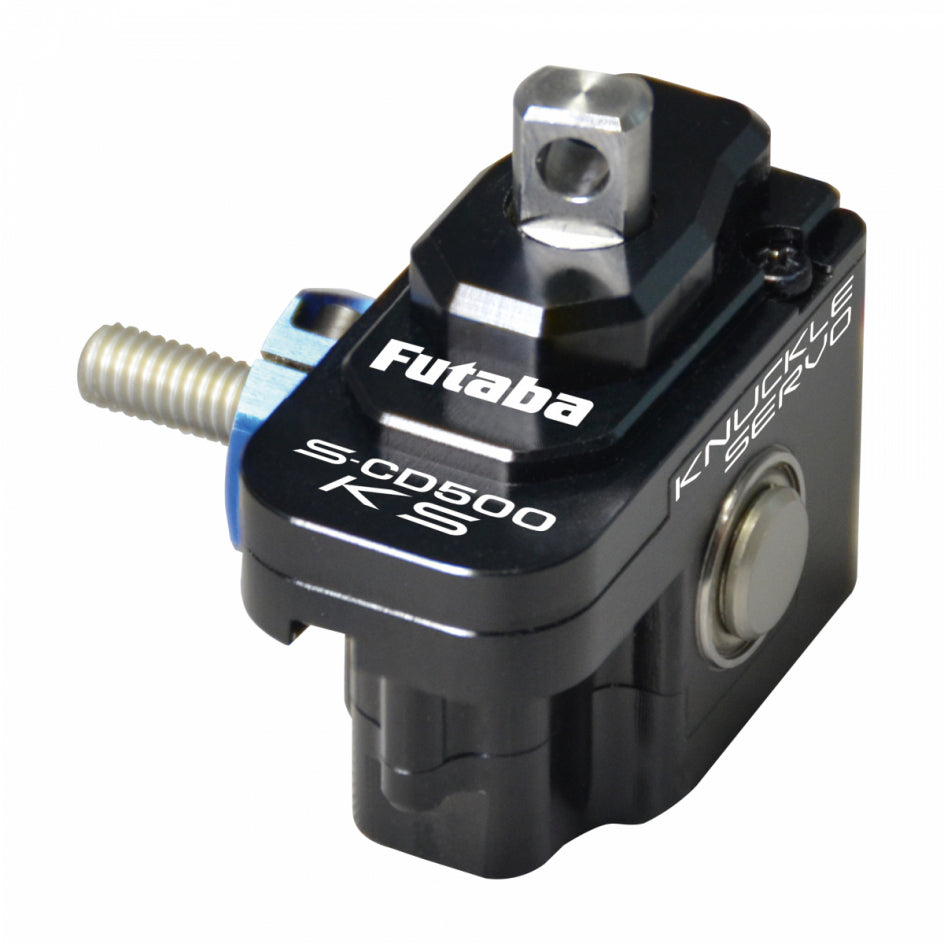

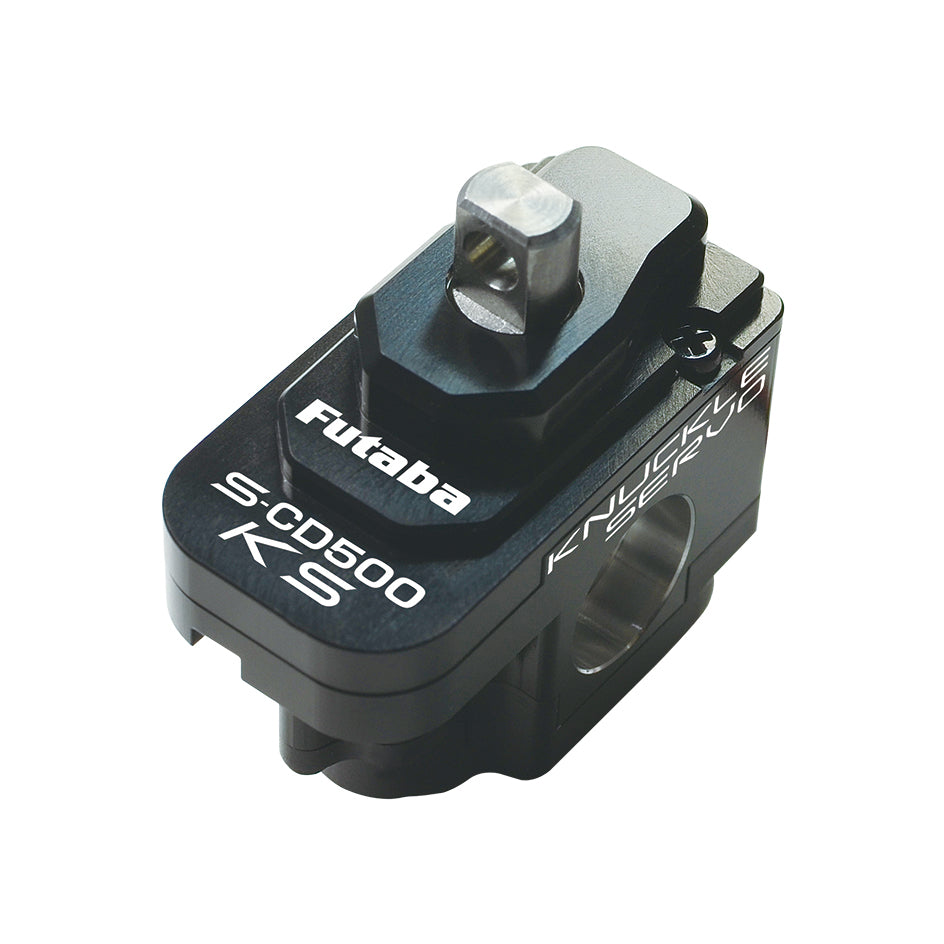

Breaking the conventional steering structure of R/C cars, the "Knuckle Servo" is here. Unlock even more potential in your beloved machine. ★The S-CD500KS is a servo compatible with "UR Mode" and "SR Mode." ★To use this product, you will need one of the updated transmitters—"T10PX," "T10PXR," "T10XCR," or "T6PV"—along with the "GYD560."

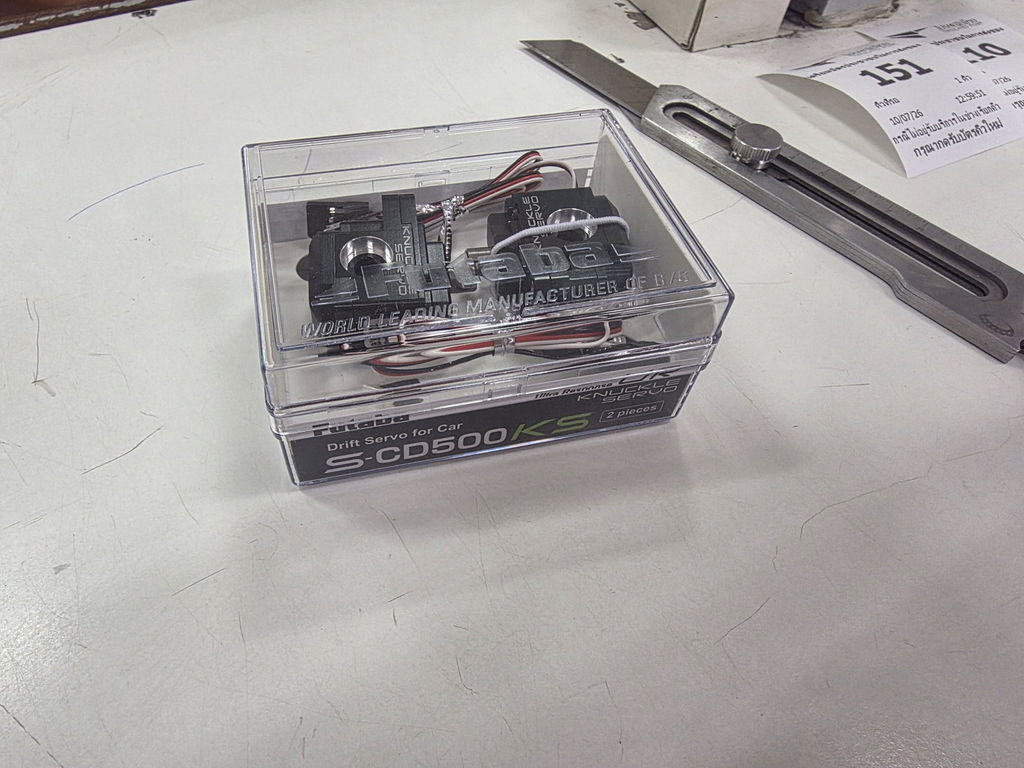

S-CD500KS 2-Unit Set
¥39,600
＜042089＞
● S-CD500KS × 2
【Included Accessories】
● Axle shaft: 2 pcs
● Upper rod ends: 4 pcs (including 2 spares)
● Spacers: 2 pcs
● M2 nuts: 2 pcs
● M2 screws: 2 pcs
Product Features
-
No tie rods, so there is no bump steer variation
-
No mechanical linkage parts required, enabling weight reduction
-
Wireless adjustment of Ackermann settings and more via compatible transmitters
-
Steering toe-angle mixing possible via the trigger on compatible transmitters
-
Smooth operation even at large steering angles
-

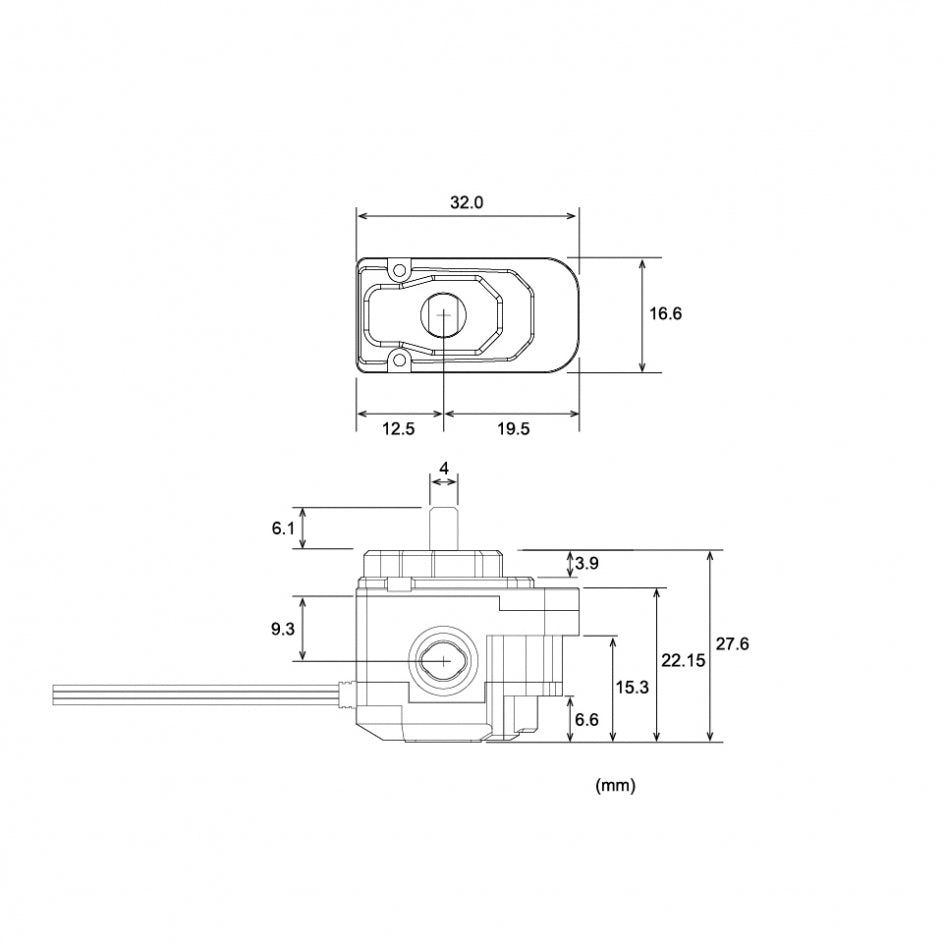

Dimensions: 32.0 × 16.6 × 27.6 mm
-
Weight: 20.7 g
-
Speed: 0.130 sec/60° (6.0V) / 0.165 sec/60° (4.8V)
-
Torque: 2.4 kgf·cm (6.0V) / 2.0 kgf·cm (4.8V)
-
Operating voltage: 4.8V – 6.0V
-
Lead wire length: 330 mm
This servo is designed for steering use on 1/10 electric 2WD drift cars.
Two servos are required per car.
The GYD560 requires a software update to Ver. 2.0 or later.
The T10PX(R) and T10XCR require a software update to Ver. 16.0 or later; the T6PV requires Ver. 4.0 or later. The transmitter must have mixing functionality for two steering servos.
Please use the ESC's BEC output at 6.0V. Using the BEC output at 7.4V may cause damage.
A humming noise occurs when the power is turned on; this is not a malfunction.
【Connection Instructions】
Install the wiring so that it does not contact the wheels. Damaged wiring may cause loss of control or short circuits, leading to breakage.
【Included Accessories】 (for 2-unit set)
● Upper rod ends × 2 pcs (4 pcs total)
● Axle shaft × 1 pc (2 pcs total)
● Spacer × 1 pc (2 pcs total)
● M2 nut × 1 pc (2 pcs total)
● M2 screw × 1 pc (2 pcs total)
Wheel hubs, hub fixing pins, and bearings (outer diameter 10 mm × inner diameter 5 mm, thickness 4 mm) are not included and must be purchased separately. Additionally, two bearings are required per servo (four bearings for left and right sides).
Download Futaba S-CD500KS English Manual from here
