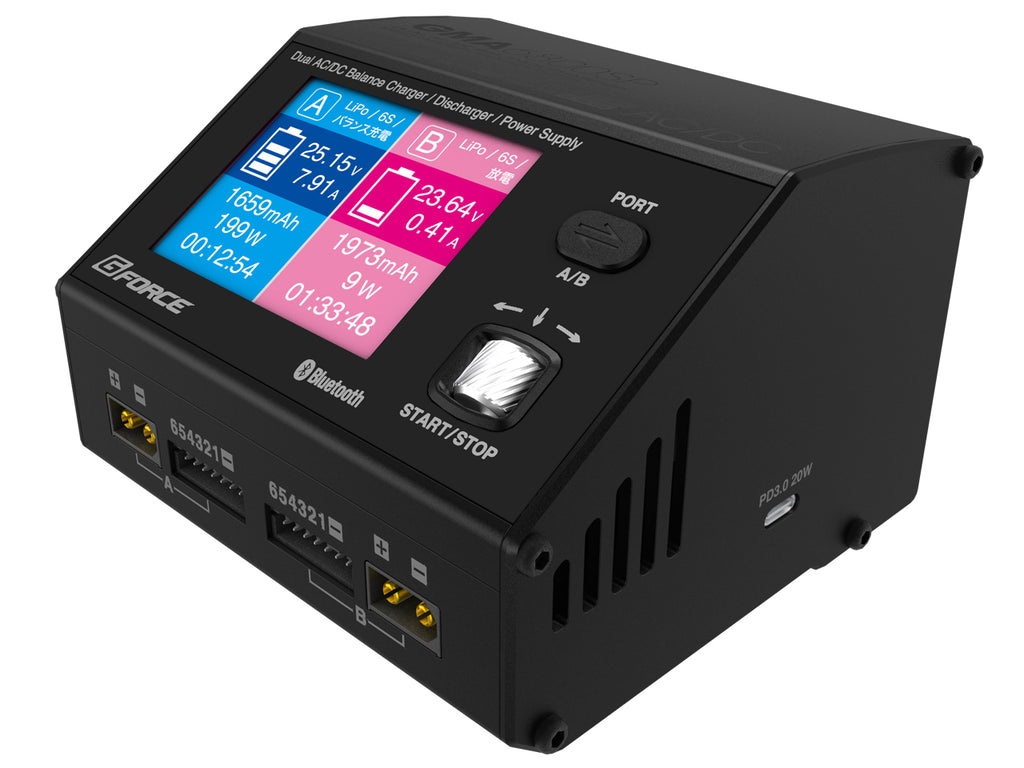

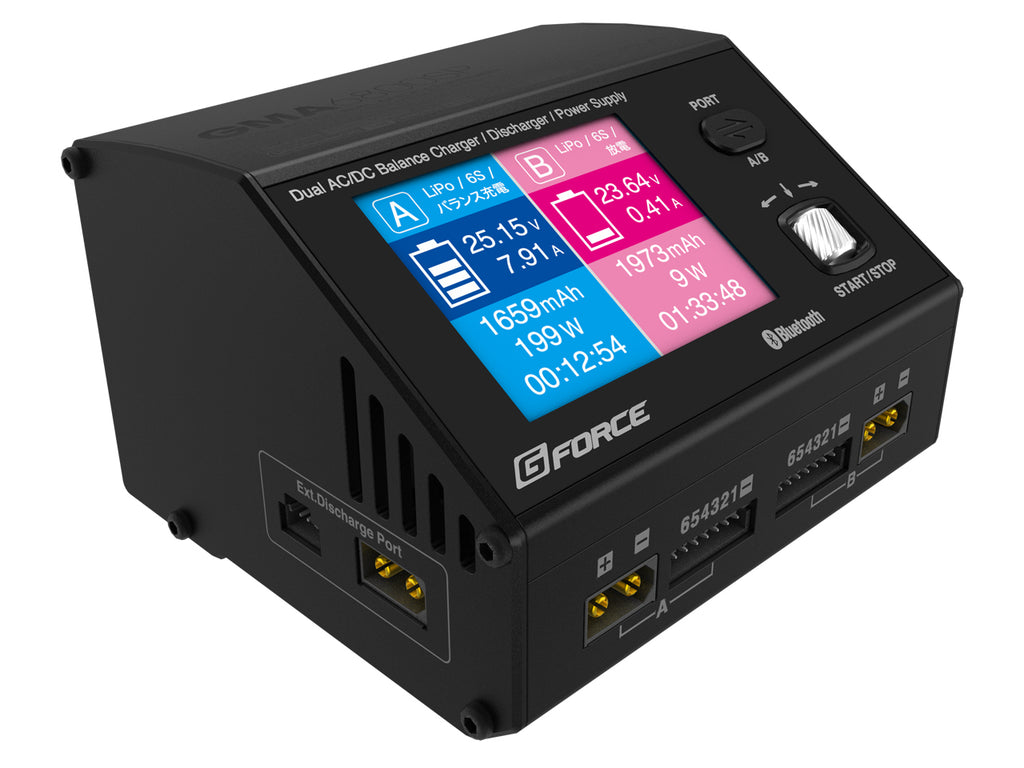

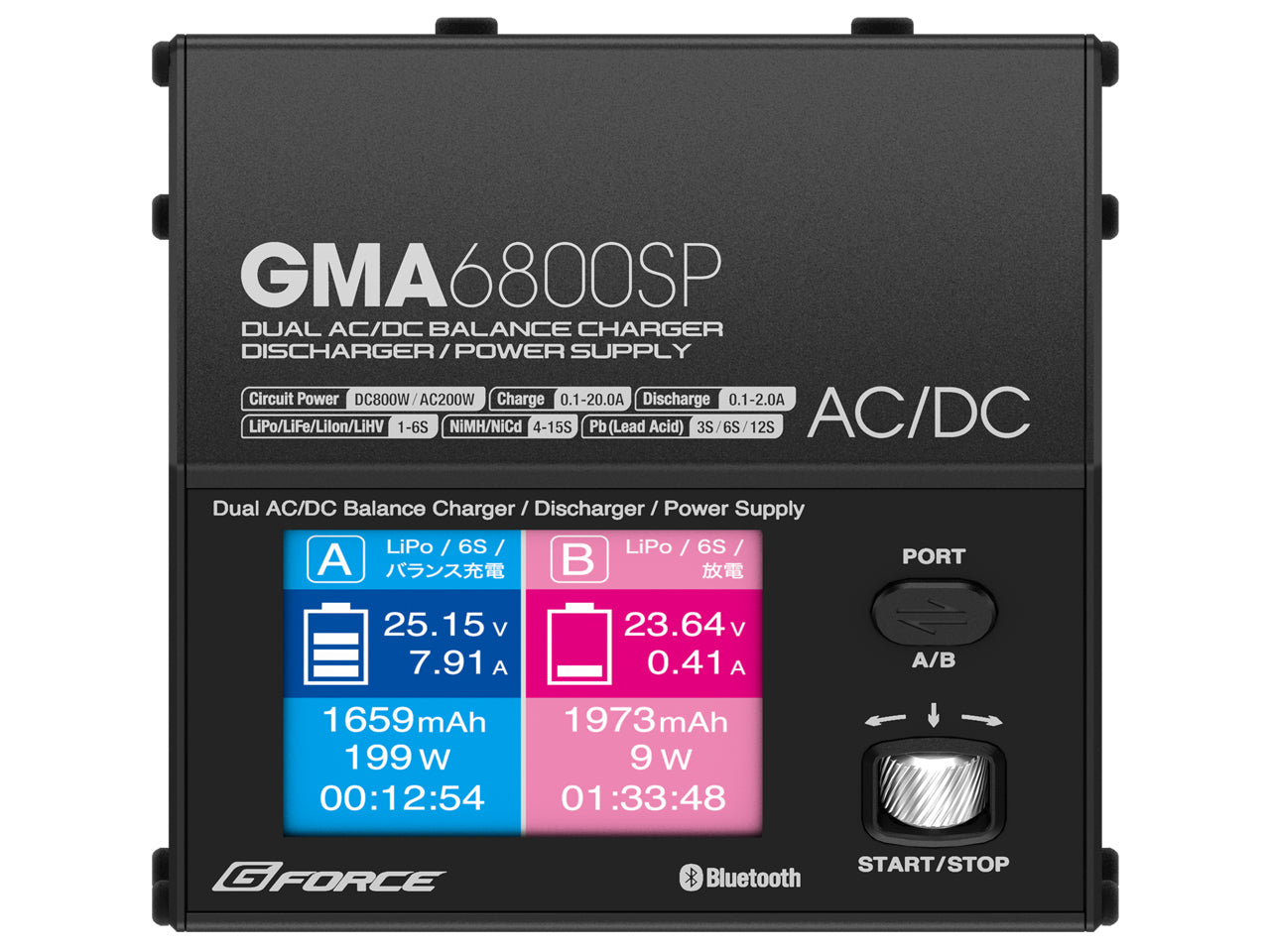

G-Force G0401 GMA6800SP AC/DC Charger
Take complete command of your RC battery management with the G-Force G0401 GMA6800SP AC/DC Charger. This powerful unit offers versatile 2-way operation, handling both charging and discharging with immense capability. Its intuitive dial operation and clear Japanese color LCD ensure user-friendliness, while the full aluminum body promises exceptional rigidity and heat dissipation. Power through large capacity batteries and fine-tune them with precision, ensuring your vehicle is always primed for peak performance.
Key Features
-
High Output Power: Max 800W DC and 200W AC for efficient battery management.
-
Dual Port Operation: Simultaneously charge and discharge two different battery types or capacities.
-

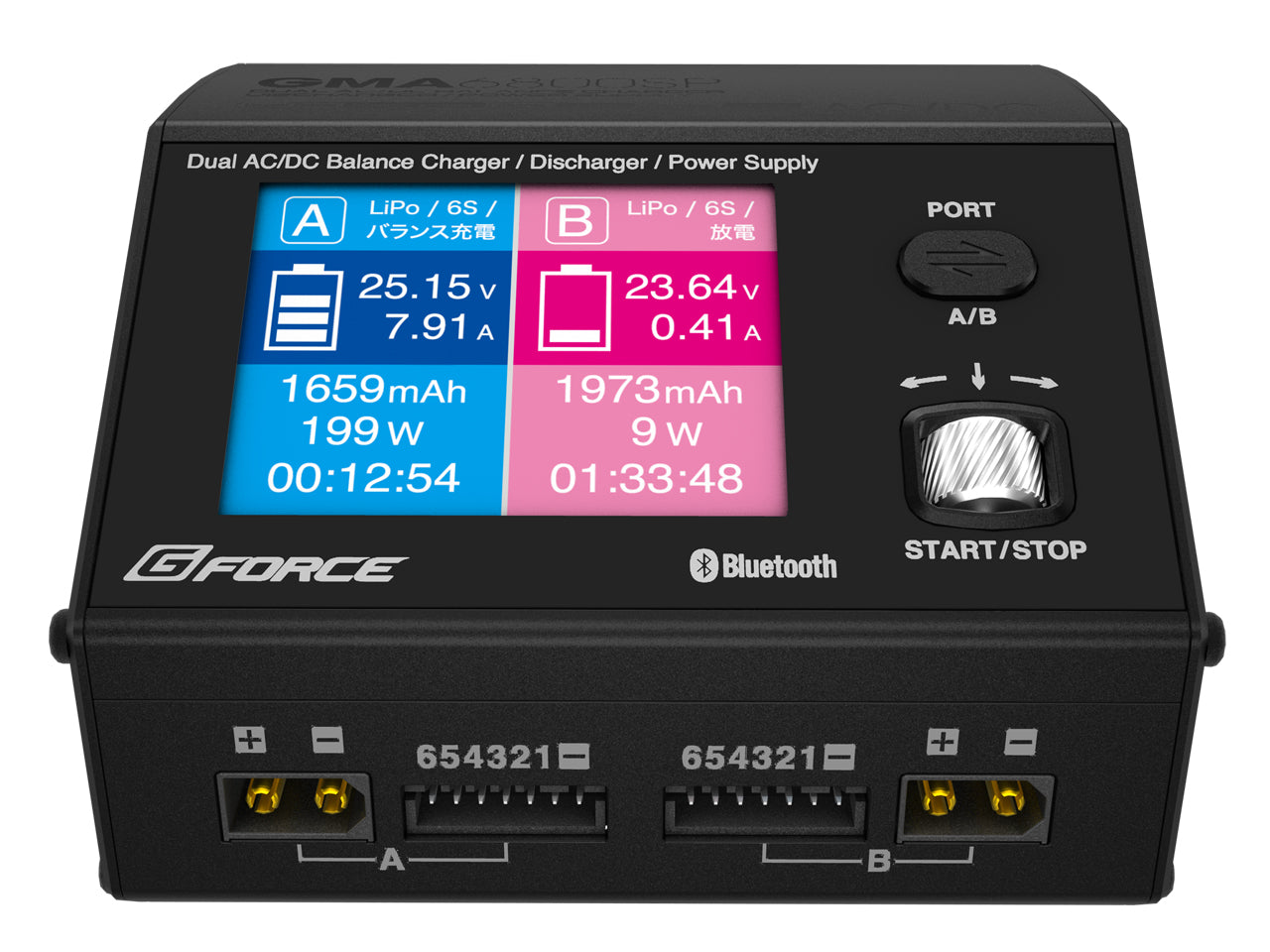

User-Friendly Interface: Features a Japanese color LCD display and intuitive dial operation for easy navigation.
-
Robust Construction: Full aluminum body provides excellent rigidity and superior heat dissipation.
-
Stabilized Power Supply: Offers DC output up to 27V/15A, suitable for powering devices like tire warmers.
-

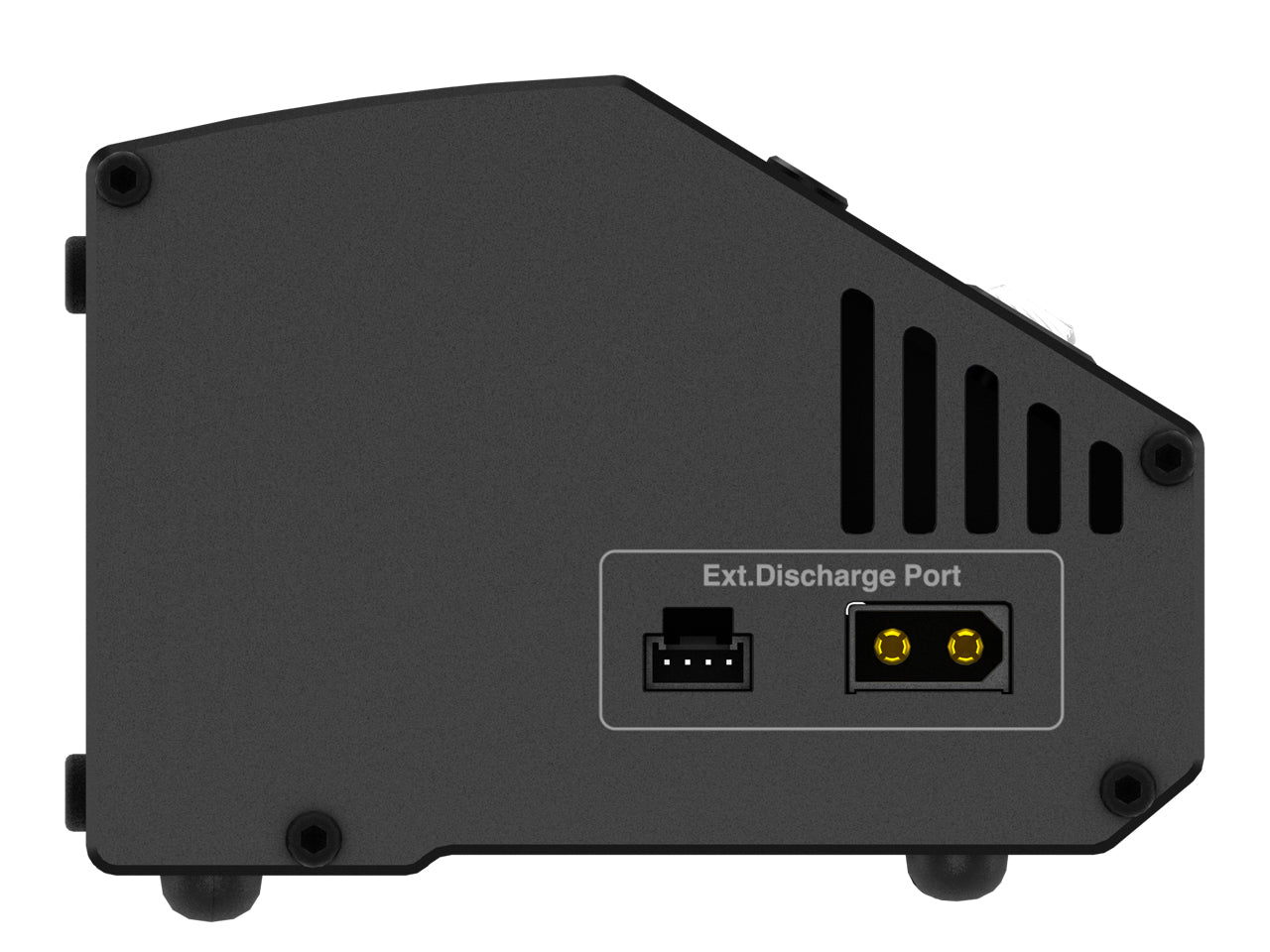

High Current Discharge Capability: Supports up to 350W (40A) large current discharge with the optional GSD350C external discharger (sold separately).
-

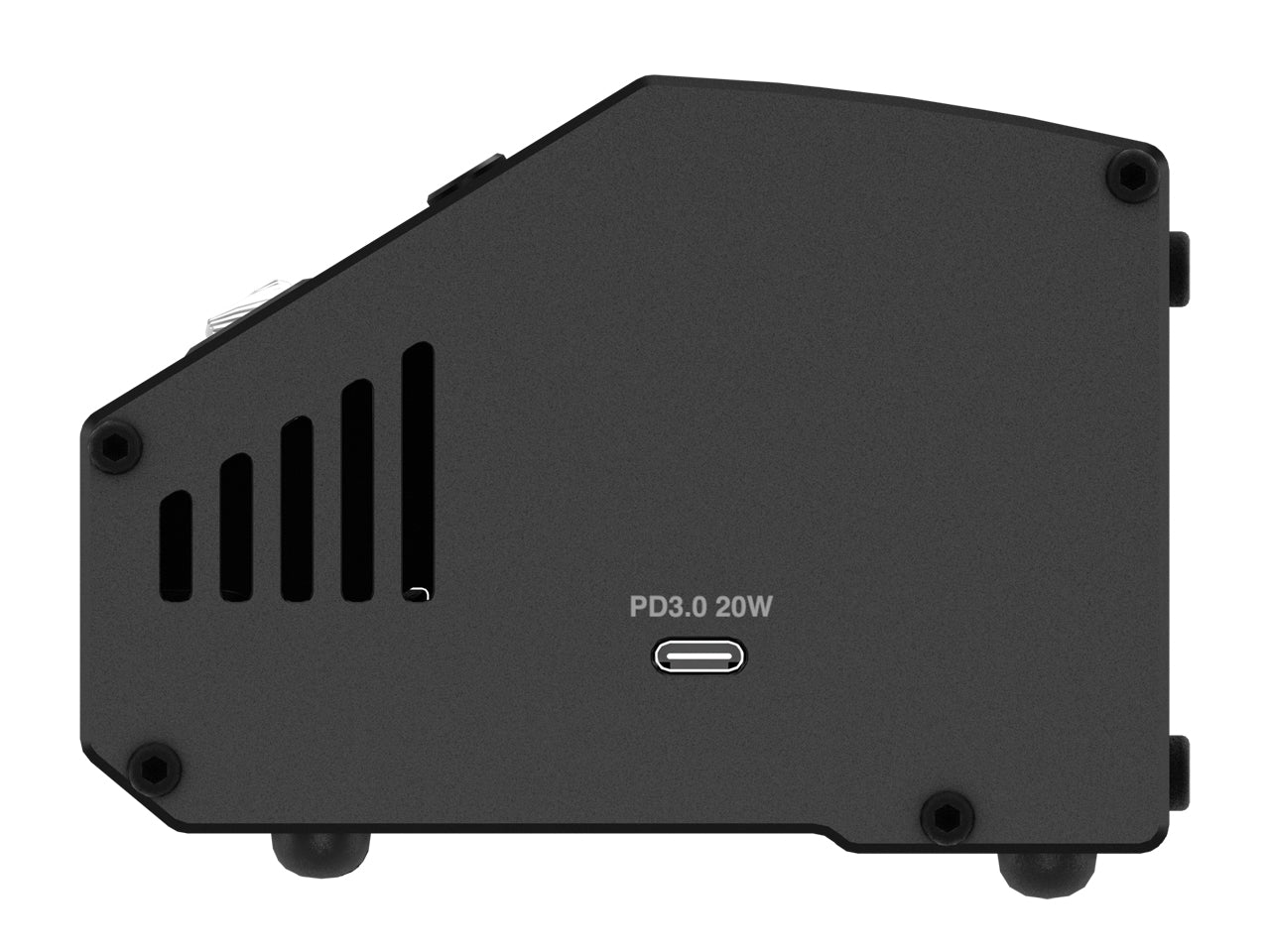

USB Type-C Output: Includes PD/QC3.0 for rapid charging of smart devices.
-
Bluetooth Connectivity: Seamlessly connect to your smartphone via the dedicated "Charge Go" app for remote control.
-
PC Software Support: Manage charge/discharge status graphically using "Cell Analyzer" software on Win/Mac.
-
SCAN to GO Function: Quick recall of stored charge settings by scanning a QR code.
-
Parallel Charging Mode: Capable of ultra-high current charging (35A) for 6S batteries (requires careful connection).
Why Choose This?
Selecting the G-Force GMA6800SP means opting for a comprehensive battery management solution. Its high output ensures swift charging for even large batteries, while the dual-port functionality maximizes efficiency. The intuitive controls, robust build, and advanced features like high-current discharge and power supply capability make this charger a compelling choice for any serious RC enthusiast seeking dependable and precise battery conditioning.
Product Information
-
Product Name: G-Force G0401 GMA6800SP AC/DC Charger
-
Part Number: G0401
-

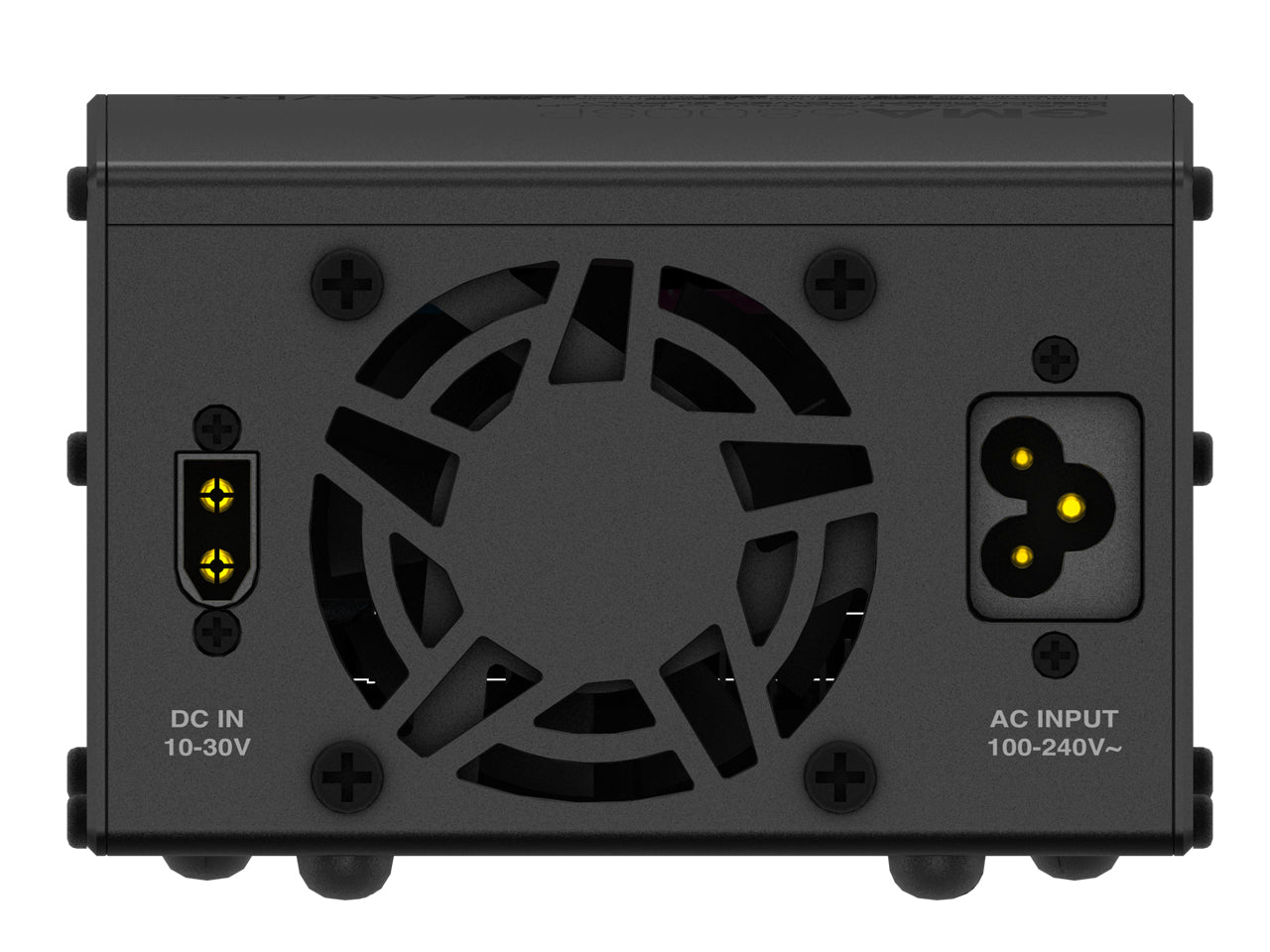

Input Voltage: DC 10-30V, AC 100-240V (50/60Hz)
-
Max Input Current: 30.0-35.0A
-
Charge Output: AC 200W, DC 400W x 2 (Total 800W)
-
Discharge Output: Main Port 10W x 2, Balance Port 37W; External Discharger up to 350W
-
Supported Battery Types: LiPo/LiIon/LiFe/LiHV (1-6S), NiMH/NiCd (4-15 Cells), Pb (3S/6S/12S)
-
Charge Current Range: 0.1-20.0A (Parallel Charging up to 20-35.0A)
-
Discharge Current Range: 0.1-2.0A (External Discharger up to 0.1-40.0A)
-
Balance Current: LiPo/LiFe/LiIon/LiHV 1.5A
-
DC Output: 5-27V / 1.0-15.0A
-
USB Type-C Output: QC3.0 (18W), PD (20W)
-
Dimensions: 116 × 110 × 79mm
-
Weight: 602g
-
Brand: G-Force
-
Note: Batteries, fuel, paint, glue, oil, grease, tools, and GSD350C external discharger are not included.
Supply your RC endeavors with the formidable charging capabilities of the G-Force GMA6800SP. It's a prime selection for enthusiasts aiming for remarkable power management and consistent battery preparation.
