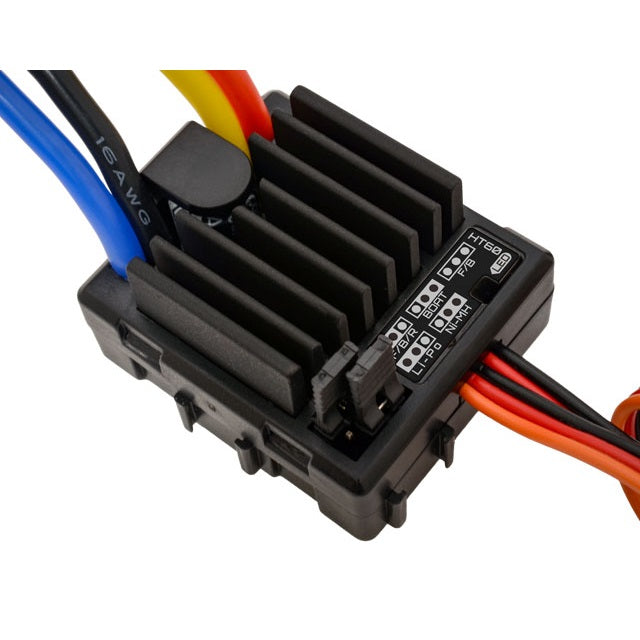

Hitec 61169 Waterproof Brush Motor ESC HT60 (Tamiya Type Connector)

Features

Waterproof brushed motor ESC with excellent output capacity and various protection functions

Waterproof
● Built-in capacitor, waterproof and dustproof. Designed for all weather conditions.

Brushed Motor
● Ideal for stepping up from entry-level models, this is a mid-class ESC for brushed motors

BEC 3A/6V
● Equipped with a switching-type high-current output BEC (3A/6V) that can also be used with high-torque servos. Maximize the servo's capabilities.

● Equipped with a high-quality special circuit to reduce the effects of surge currents and protect the equipment.

● Auto throttle calibration that even beginners can perform with confidence provides accurate calibration and stable operation.

● Equipped with a low-voltage auto-cut function that is safe even for lipo batteries, where over-discharging can be fatal. Equipped with temperature protection to safely protect the ESC for a long period of time.

● The operating mode can be easily set with a jumper plug.

You can choose from three operating modes.
[1] F/B/R: Forward/reverse mode (with brake)

[2] BOAT: Forward/reverse mode (with drag brake)

[3] F/B: Forward/reverse mode (without brake)

Compatible types
1/10, 1/12, 1/16 On-road, off-road, short course, buggy, crawler, boat

Connector type
●Tamiya type

Set contents
ESC
Double-sided tape for main unit installation
Instruction manual
Basic specifications
Forward: Continuous/peak current 60A/360A
Reverse: Continuous/peak current 30A/180A
Compatible battery Li-Po 2 cells, Ni-MH 6 cells
Compatible types 1/10, 1/12, 1/16 On-road, off-road,
Short course, buggy, crawler, boat
Compatible motor speed (T)
2-cell Li-Po or 6-cell Ni-MH 540,550 motor 15T or higher or 30000rpm@7.2V or less
Internal resistance Forward: 0.001Ω Reverse: 0.002Ω
BEC output voltage 3A/6V (switching control)
Size 34.5 × 30.2 × 20.5 mm
Weight 42g
