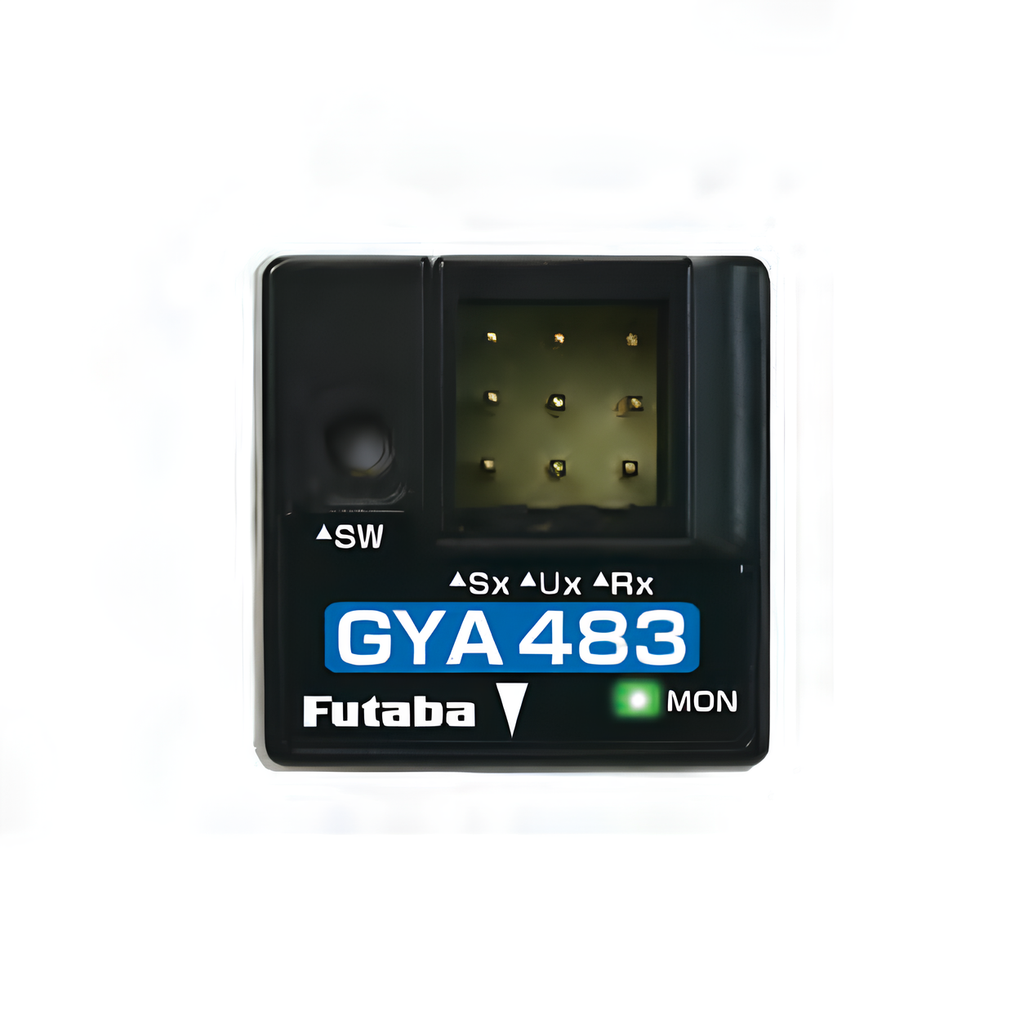

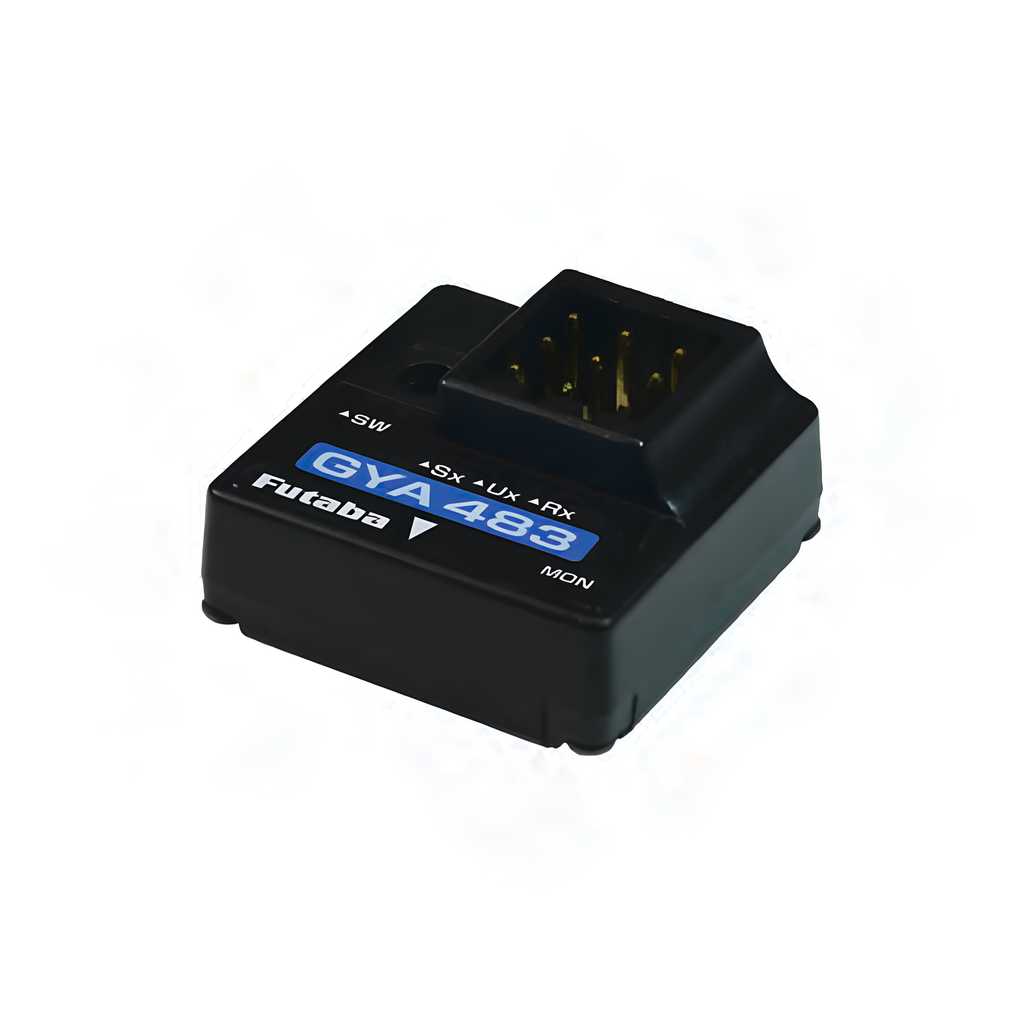

Experience comprehensive flight control with Futaba's GYA483, a compact stabilization unit now featuring 6-axis sensing through combined 3-axis angular velocity and accelerometer sensors. This advanced system supports 4D flight profiles while offering auto recovery, roll-flat functionality, air brake compatibility, and camber mixing. Elevon and V-tail configurations integrate seamlessly, delivering authoritative control in a 20.7mm footprint.
Key Features
-
6-axis control via 3-axis angular velocity plus accelerometer sensors.
-
4D flight compatibility for advanced aerobatic maneuvering.
-
Auto recovery function assists in regaining controlled flight from unusual attitudes.
-
Roll-flat feature enables consistent axial rolls.
-
Air brake and camber mixing support for enhanced approach control.
-
Elevon and V-tail mixing for delta wing and tailless configurations.
-
Operating voltage: DC 3.8V to 8.4V.
-
Current consumption: 30mA.
-
Ultra-compact dimensions: 20.7 × 20.7 × 11.0mm.
-
Requires Futaba S.BUS2 compatible servos for full 3-axis mode operation.
Why Choose This
Serious pilots recognize that comprehensive sensor fusion separates adequate control from authoritative command. The GYA483 delivers six axes of sensing in a package barely larger than a sugar cube, enabling installation where space commands premium. Auto recovery provides reassurance during aggressive flight regimes, while 4D compatibility ensures your equipment keeps pace with evolving aerobatic styles. Futaba's engineering guarantees seamless communication between accelerometers, gyros, and your S.BUS2 servo network. This is professional-grade stabilization refined for the most demanding installations.
Product Information
-
Manufacturer: Futaba
-
Product Number: 00107464-3
-
Model: GYA483
-
Type: 6-axis stabilization unit (3-axis gyro + accelerometer)
-
Sensor Configuration: 3-axis angular velocity + accelerometer
-
Supported Functions: 4D flight, auto recovery, roll-flat, air brake mixing, camber mixing, elevon/V-tail mixing
-
Operating Voltage: DC 3.8V - 8.4V
-
Current Consumption: 30mA
-
Dimensions: 20.7 × 20.7 × 11.0mm
-
Servo Compatibility: Futaba S.BUS2 compatible servos only (for 3-axis mode)
-
Note: S.BUS only or non-S.BUS servos cannot be used in 3-axis mode
Command your aircraft with six-axis authority packaged for modern airframes. The GYA483 delivers comprehensive flight control in a footprint that disappears into your build. Order your Futaba stabilization unit today and experience sensor fusion that responds to your input with instantaneous fidelity.
