Please Note: This is a PRE-ORDER.
Your order will be shipped as soon as the pre-order item arrives in stock. If your order includes both in-stock and pre-order items, the entire order will be held and shipped together once the pre-order item becomes available.
About Stock Arrival:
Some pre-order items are limited in quantity or may have Reduced production by the manufacturer.
Because of this, we might not receive the full amount we ordeRed.
If this happens, we’ll ship items in the order pre-orders were placed. (first-come, first-served basis)
If your order isn’t fulfilled in the first shipment, it will automatically move to the next batch.
Important Notes:
for some limited items or items with no restock plans, we may have to cancel your order.
Even if you pre-order early, we can’t guarantee your item will ship in the first batch.
About Release Dates:
Release dates or periods (if announced by the manufacturer) are shown on the product page.
However, release dates may be delayed due to the manufacturer’s circumstances.
Please treat release dates as estimates only.
Estimated Arrival (ETA): End of JULY 2026
PO Closes on 12th JULY 2026
~~~

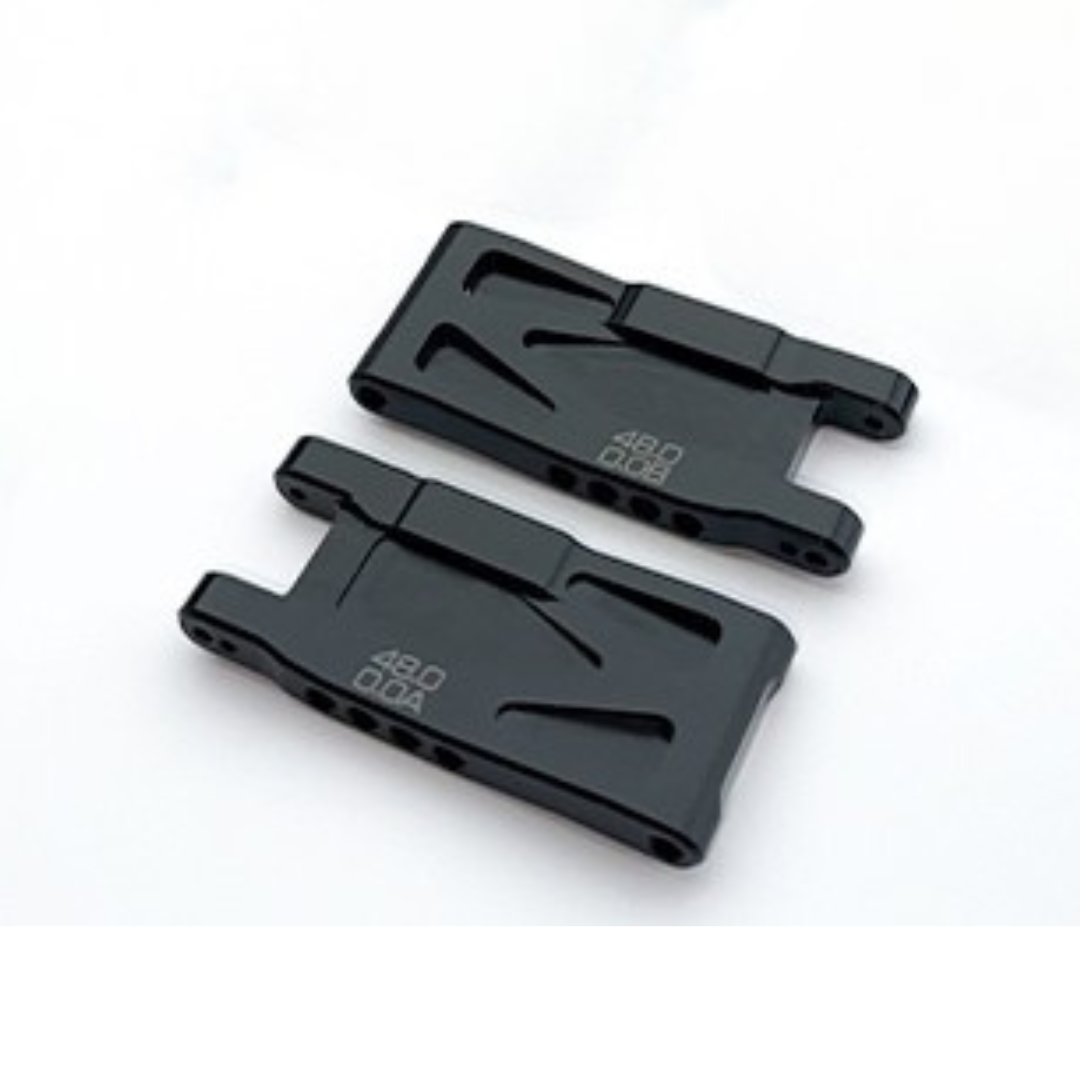

Achieve the pinnacle of rear traction performance with the REVED HT Rear Lower Arm series, precision-machined from lightweight and highly rigid DURACON material for exceptional smoothness and accuracy. Engineered through extensive testing by the Rêve D development team, these arms deliver unparalleled suspension response that will transform your RC drifting experience on every corner.
Key Features
-
Premium Material: Lightweight and highly rigid DURACON (POM) material machined to achieve a highly precise finish and dramatically smooth suspension movement.
-
Multiple Length Options: Available in four lengths (42mm, 45mm, 48mm, and 51mm) to match your chassis and body tread width requirements.
-
Caster Angle Choices: 0 degrees on all lengths, plus a 42mm variant with 2.6 degrees caster angle featuring inclination on the outer pin side.
-
Performance Tuning: Short types (42mm, 45mm) improve longitudinal traction when exiting corners; long types (48mm, 51mm) reduce alignment changes during body roll for enhanced lateral grip and stable driving.
-
Reversible Structure: 42mm, 45mm, 48mm, and 51mm arms with 0-degree caster adopt a reversible design, allowing two damper mounting height selections by exchanging left and right.
-
Unique 2.6 Degree Design: 42mm caster 2.6 degrees type tilts the knuckle forward without adding skid angle, increasing traction without hindering suspension sinking.
-
Compatibility: Fits RDX and other chassis with Φ3mm inner suspension pins and Φ2mm outer suspension pins.
-
Accessories Included: M2 tapping screws x4 (for fixing outer suspension pins) and POM 6mm thick spacers x2.
Why Choose This
The REVED HT Rear Lower Arm series represents the culmination of extensive material, shape, and dimension testing by the Rêve D development team to deliver the ultimate rear traction solution. Whether you choose the short types for explosive corner exit performance or the long types for superior stability during body roll, these arms provide precisely tunable characteristics that adapt to your driving style. The innovative reversible structure and 2.6-degree caster option offer unmatched setup flexibility.
Product Information
-
Brand: REVED (Rêve D).
-
Model Numbers: RD-023-0 (48mm, 0°), RD-024-0 (51mm, 0°), RD-020-0 (42mm, 0°), RD-022-26 (42mm, 2.6° sway bar compatible), RD-021-0 (45mm, 0°).
-
Material: DURACON (POM) machined construction.
-
Inner Suspension Pin: Φ3mm compatibility.
-
Outer Suspension Pin: Φ2mm compatibility.
-
Damper Mounting Heights: Two positions selectable via left/right exchange on 0-degree reversible types.
-
Accessories Included: M2 tapping screws x4 (for outer suspension pin fixing), POM 6mm thick spacers x2.
-
Application: RC drifting chassis including RDX and similar vehicles.
Discover the difference that precision engineering makes with the REVED HT Rear Lower Arm series, a must-have upgrade that unlocks your chassis's full potential. Upgrade your RC drifter today and feel the superior traction that will elevate your performance on every track.
