Wrap-Up Next 0762-FD VX-DOCK ZERO - Front Core Module (Black)

Save 5%
Wrap-Up NextWrap-Up Next 0762-FD　|　4571344922922
Price:
¥16,511 ¥17,380

Description

Close PO

~~~~

Retrofit to revive your old car.

Upgrade to the latest RWD model. Compatible with drift packages and WRAP-UP chassis.

Front core module "VX-DOCK ZERO"

The front core module "VX-DOCK ZERO" used in the latest MB-01, BT-01, and M-RDX conversion kits is available as a standalone model.

The unit integrates the suspension, servo, and steering mechanisms and can be connected to the chassis with only four screws (front gearbox fixing part).

Recommended for reviving old cars and homemade chassis.

Direct steering system

Realizes the large steering angle required for RWD drift driving while suppressing optimal Ackerman, EPA, and bumps.

Suspension mount-less structure

The lower and upper are made of a common aluminum arm, and are directly fixed to the bulkhead with one-sided support by a strong 5mm diameter steel shaft. No suspension mounts, suspension shafts, suspension balls, etc. are required, improving maintenance and contributing to cost.

Excellent maintainability

The modular front unit can be easily removed from the chassis with just four screws. Overwhelming maintainability.

*The included carbon upper plate can be used to connect the upper deck of a custom chassis, and can also be used as a mounting plate for mechanisms and ESCs.

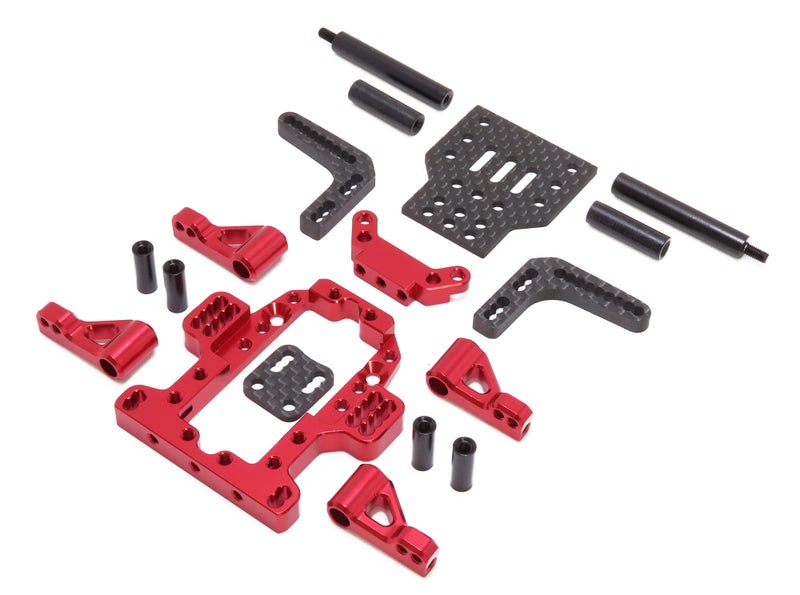

Product configuration:

■Aluminum bulkhead (servo mount)

■Aluminum lower and upper arms (common design)

■Aluminum upper brace

■Carbon extension plate

■2.0t carbon upper plate

■4.0t carbon shock tower

■Spacers and screws

Recommended parts required separately:

・ReveD front knuckle (D1-415FM)

・TAMIYA SP-1000 high torque servo saver (black)

・Connection parts such as ball ends, pillow balls, and turnbuckles
