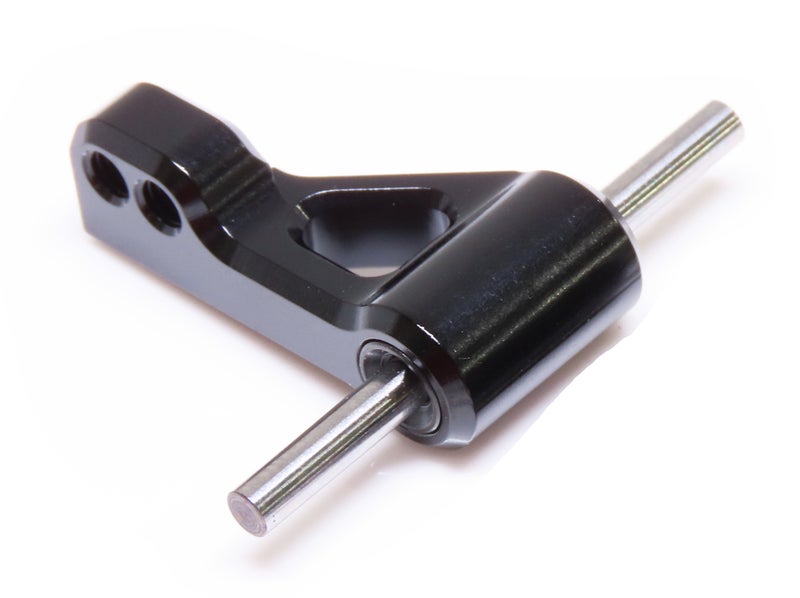

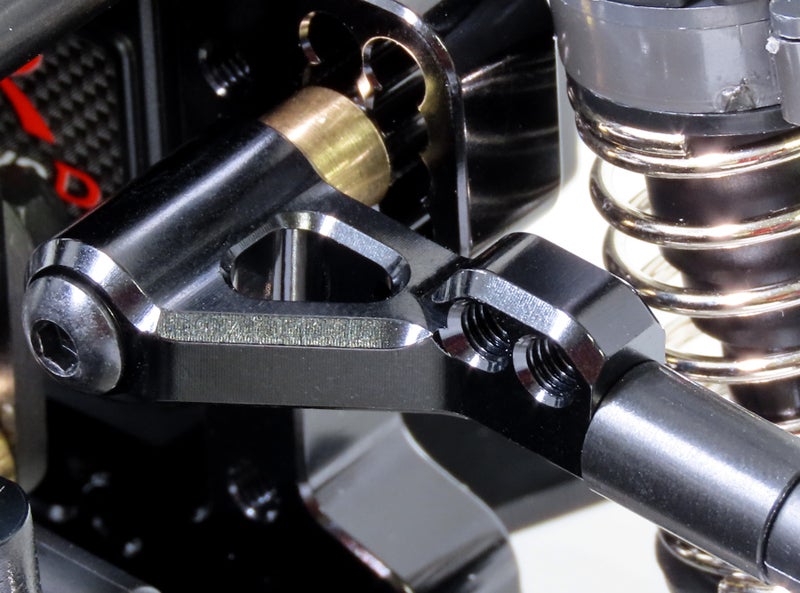

Wrap-Up Next 0742-FD Dual Purpose Arm (Black)



These are the same as the upper and lower arms that come with the MB-01 conversion kit. Use them for spare and custom chassis builds.

Ultra-versatile aluminum suspension arms that can be used in a variety of ways, from upper to lower. Compact design and shock mount positions allow for versatile use from upper to lower arms.

Perfect for custom chassis builds.

One-sided support upper arm:

Use by fixing the included post to the base. Adjust the caster angle between the post and the base with a spacer, etc.

2.5mm diameter shaft support:

The included post can accommodate a 2.5mm diameter shaft. Can be used as a 2.5mm diameter upper arm or lower arm.

3mm diameter shaft support:

Can be used as a 3mm diameter lower arm by installing the separately sold 0743-FD Φ5-3mm conversion oilless bush (4pcs).

Can be used upside down and left and right inverted.

Product configuration:

■ Dual-purpose arm L (Black)

■ Dual-purpose arm R (Black)

■ Φ5mm steel post x2

■ Button head screw M3*6 x2

■ Button head screw M3*8 x2
