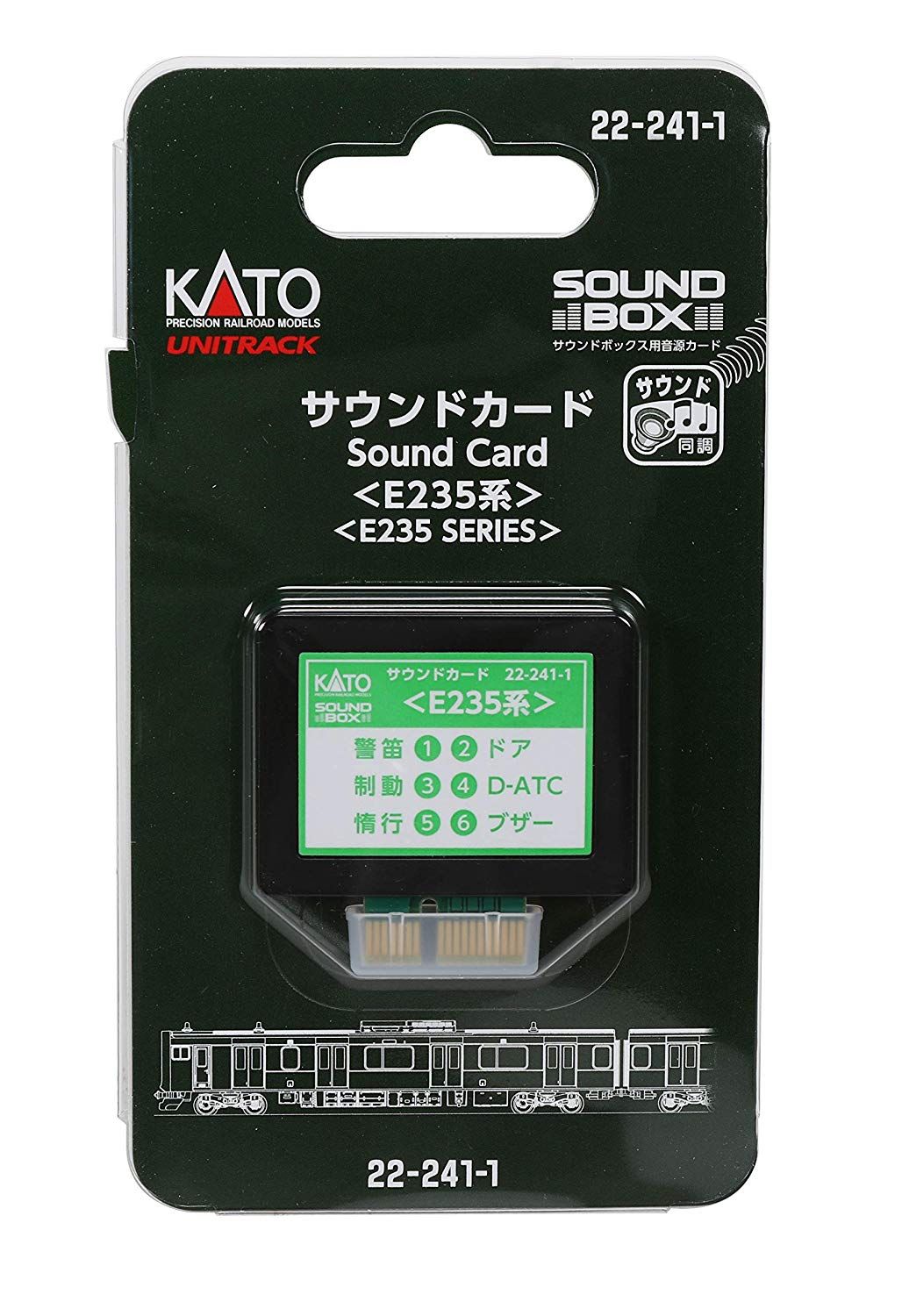

KATO 22-241-1 Unitrack Sound Card `Series E235` [for Sound Box]

[Product introduction]
- We will commercialize the sound card of the E235 family which began active in the Yamanote line.
- The E235 series currently active in the Yamanote line which is the face of Tokyo began operation from Heisei 20 (2015) as a successor to the E231 series.
- We plan to replace all existing E231 series 500 series by the spring of 2020 where the Tokyo Olympic Games will be held, and it is also expected to be useful as a new standard for JR East's commuter train in the future.

- You can enjoy the sound of SiC element VVVF inverter control device mounted in E235 series.
- In addition, it reproduces the chime sound etc. of the home door which moves in conjunction with the door opening and closing, and you can enjoy the atmosphere of the present Yamanote line with sound.
- This product is a [sound synchronized] type sound card equipped with the [controller priority mode] writing function.
- Besides being able to enjoy with the real acceleration / deceleration feeling that the vehicle running synchronized with the running sound, it also realizes easy driving sound running in synchronism with the operation of the power pack.
- Even those who start driving with the sound box from now on, you can enjoy it easily.

[Product Features]
- A lineup of sound cards of commuter type train E235 series currently active in the Yamanote line.
- Mitsubishi SiC Element VVVF Inverter excitation sound at departure / stoppage derived from inverter control device is reproduced.
- The door opening and closing sound reproduces the door operation sound, the door chime sound ringing in the car, the chime sound of the home door.
- Sound synchronized type cards can enjoy acceleration / deceleration that follows the running sound with a feeling like driving a real car.
- In the controller priority mode, the vehicle runs according to the operation of the power pack as well as the controller synchronized type sound card. You can enjoy it easily for those who start sound cards now.
- By loading this product into the sound box, it becomes possible to operate in the [controller priority mode] even with the sound synchronized type card of the existing product.
- Enclose a [function label] for the sound box in the package.

Contents
[Automatically generated environmental sound]
- Motor sound · Rolling sound · SIV · Compressor · In-car LCD operation information update chime

[Sounds that sound when a card is inserted and the eject button is pushed]
- pantograph rising

[Working sound / action sound reproduced with the function button]
- Horn: Electric whistle ... It is possible to select two kinds of sounds as you like. I will continue to ring while I press it
- Horn: Electric whistle + sky whistle ... You can choose two different timbres according to your preference. I will continue to ring while I press it
- Door: Only while parked ... Every time you press the button, the door [door opening sound] / [door closing sound] and the accompanying door chime sound and home door chime sound alternately.
- Braking: Running ... Squealing sound (fricative) sounds, press it again or stop when it stops.
- Braking: Stopping ... The brake release sound (air exhaust sound) at the time of departing will sound once.
- ATC: While traveling / stopping ... D-ATC bell sounds once. It is also possible to hit repeatedly.
- Coast: Running ... The running sound switches to coasting, keeping the running speed of the vehicle. If you push it again or change the speed, the running sound will return to the key row (or braking).
- Coast: Stopping ... Corrected stop position: If you drive the vehicle while pressing the button, traveling will synchronize with the controller.
- Buzzer: The buzzer beeps while pressing the button. I will direct a communication signal between the crew.

- Equipped with an emergency stop function. If you press the eject button while driving, it stops instantaneously.
- Controller priority mode is installed. By pressing and holding F3 and F5 at the same time, the mode switches.

[set content]
- Sound card body

[Related option parts]
- 22-101 Sound box
- 10-1468 - 1470 E235 series Yamanote Line
