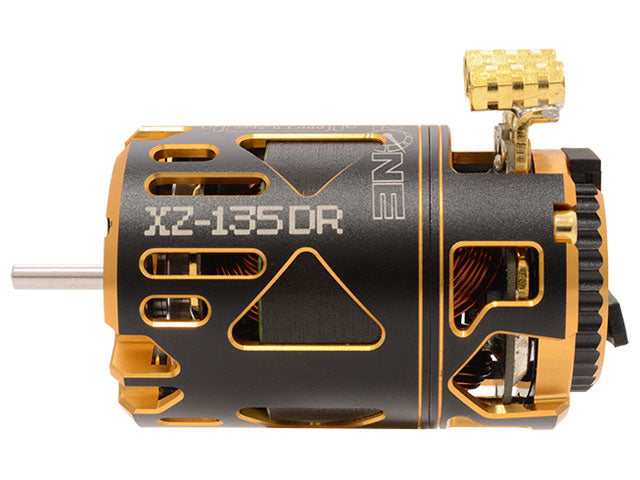

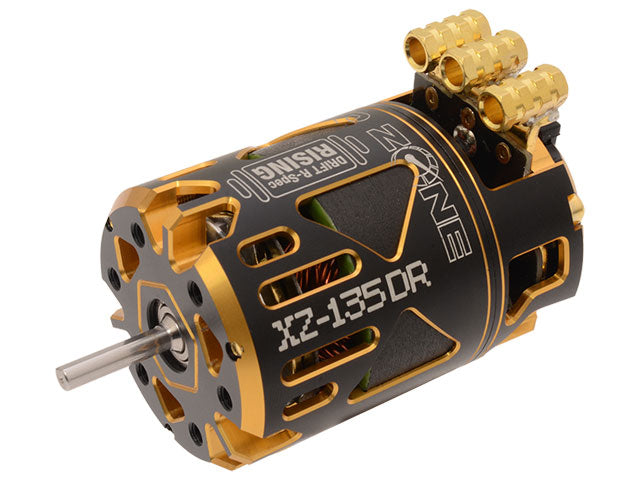

HiTec 61168 RED ZONE XZ-135DR Drift R-Spec Brushless Motor 13.5T

Save 10%
HitecHiTec 61168　|　0669962611688
Price:
¥14,850 ¥16,500
Stock:
Available on back order. Generally, we can ship your order within 2-5 working days. For Pre-Order items, please refer to description for release dates.

Description

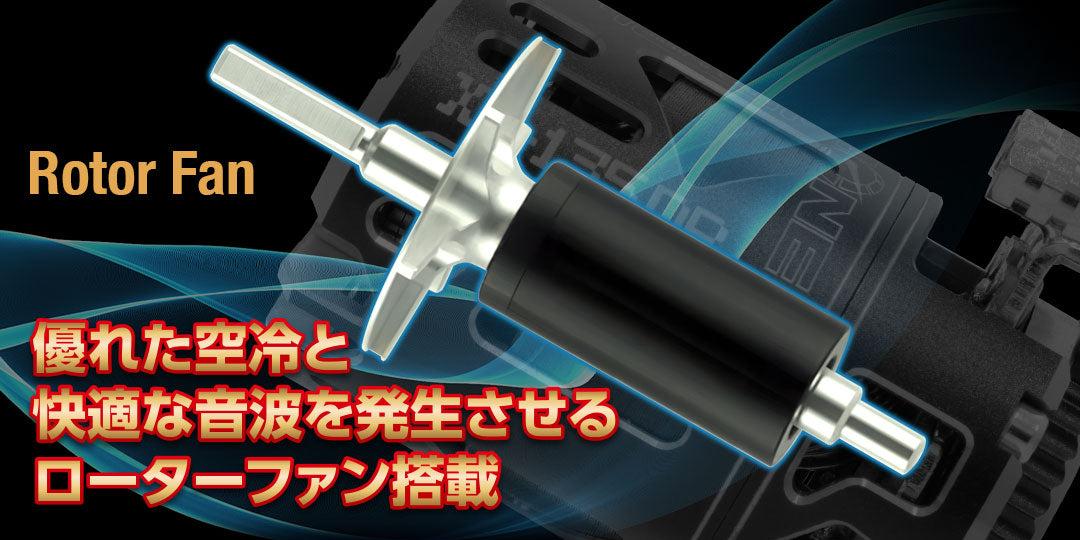

Equipped with a rotor fan that provides excellent air cooling and generates comfortable sound waves

  • Revolutionary structural design tunes the sound during high speed turbo rotation
  • The internal aerodynamic resistance at full throttle rate has also been drastically reduced, reducing temperature rise at high power output by 5% compared to conventional models.

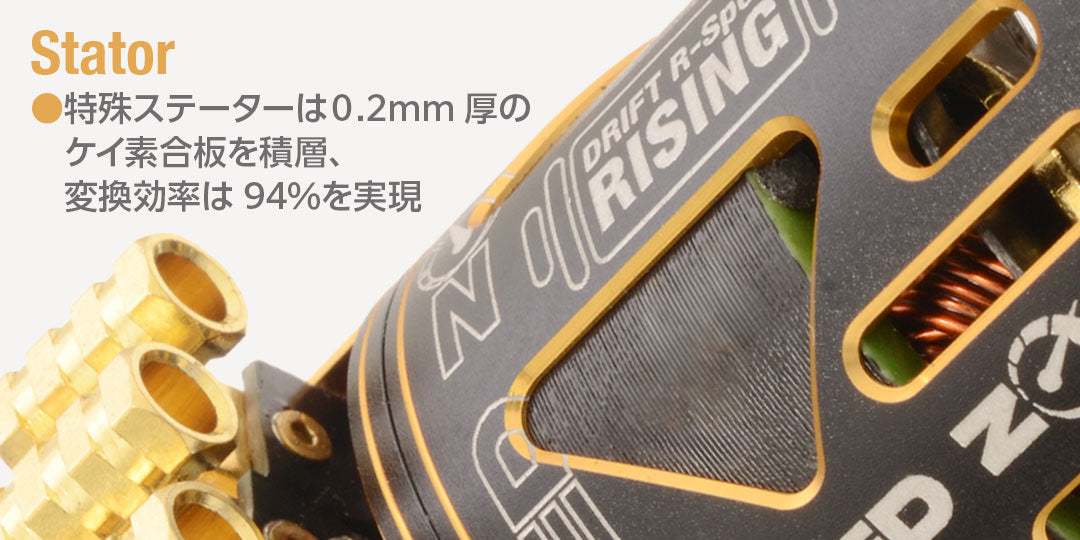

  • The special stator is made of 0.2mm thick silicon plywood, achieving a conversion efficiency of 94%.
  • Developed a smooth two-pole rotor that can withstand high speed rotation even at temperatures of 200°C
  • Uses high heat resistant enameled wire (1EI/AIW (H) grade)

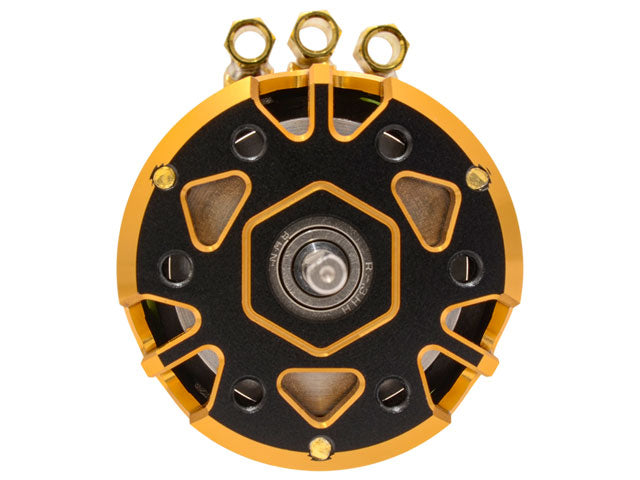

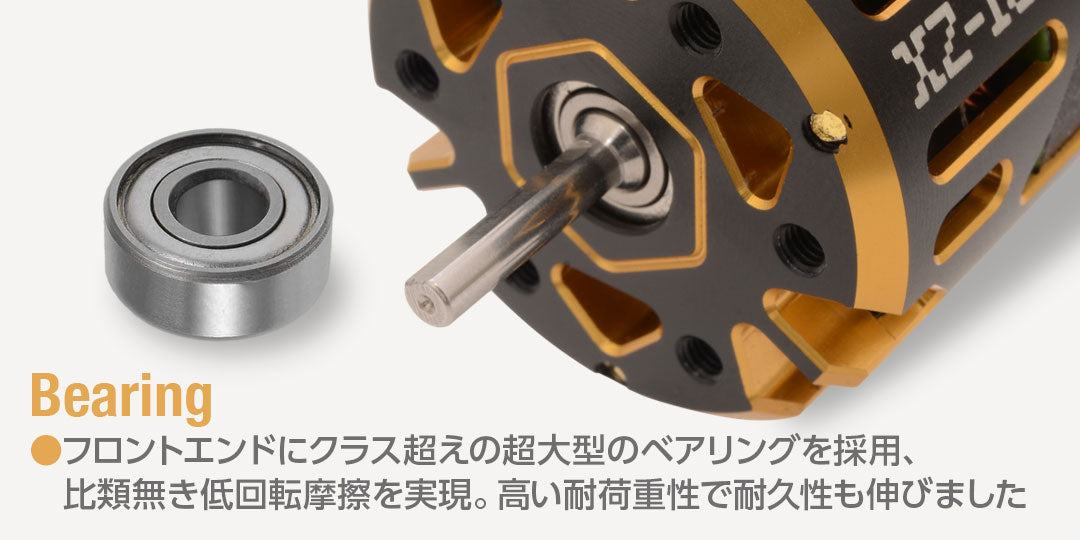

  • The front end uses an extra-large bearing that exceeds its class, achieving unparalleled low rotational friction. High load capacity and increased durability.

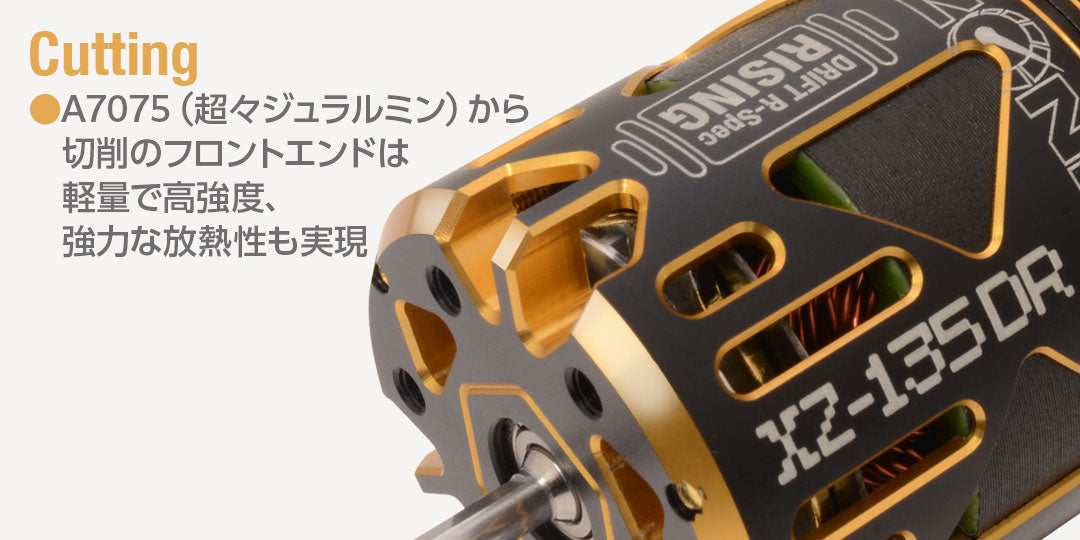

  • The front end is machined from A7075 (super duralumin) and is lightweight, strong, and has excellent heat dissipation properties.

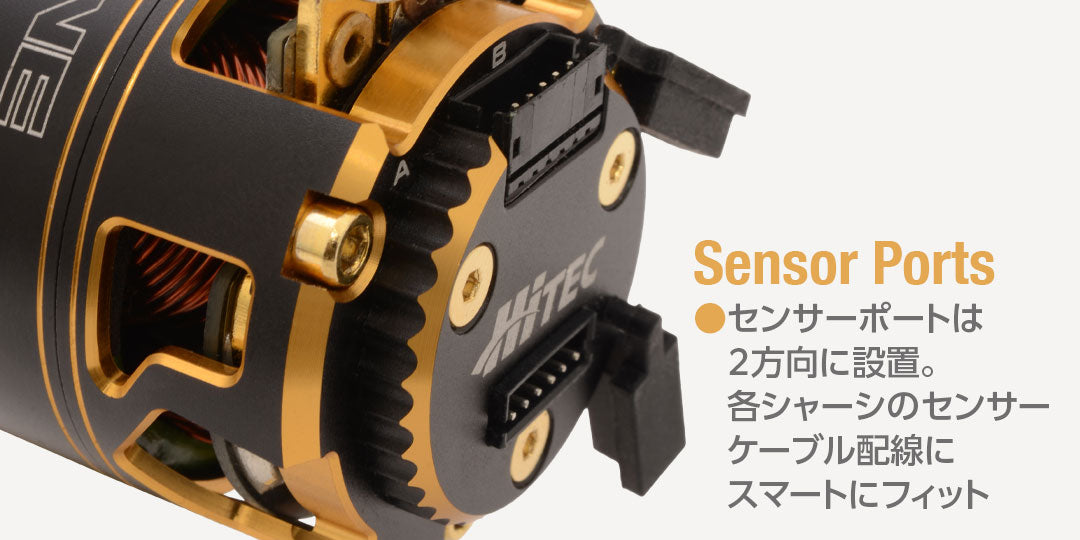

  • The sensor ports are installed in two directions, allowing for a smart fit with the sensor cable wiring of each chassis.
  • Gold-plated cable sockets are pre-soldered, making it easy to attach and detach wires.

Set contents

  • Brushless motor body
  • Sensor cable



Basic Specifications

product RED ZONE
XZ-105DR (10.5T) 		RED ZONE
XZ-135DR (13.5T)
Number of turns (T) 10.5 T 13.5 T
KV (RPM/Volt) 3850KV 3100KV
Power (W) 550 W 420 W
Max Ampere (A) 65A 50A
No-load current (7.4V) 1.5A 1.1 A
Electrical resistance (mΩ) 0.0155 0.0252
Number of cells (LiPo) 2-3 S
Rotor pole 2

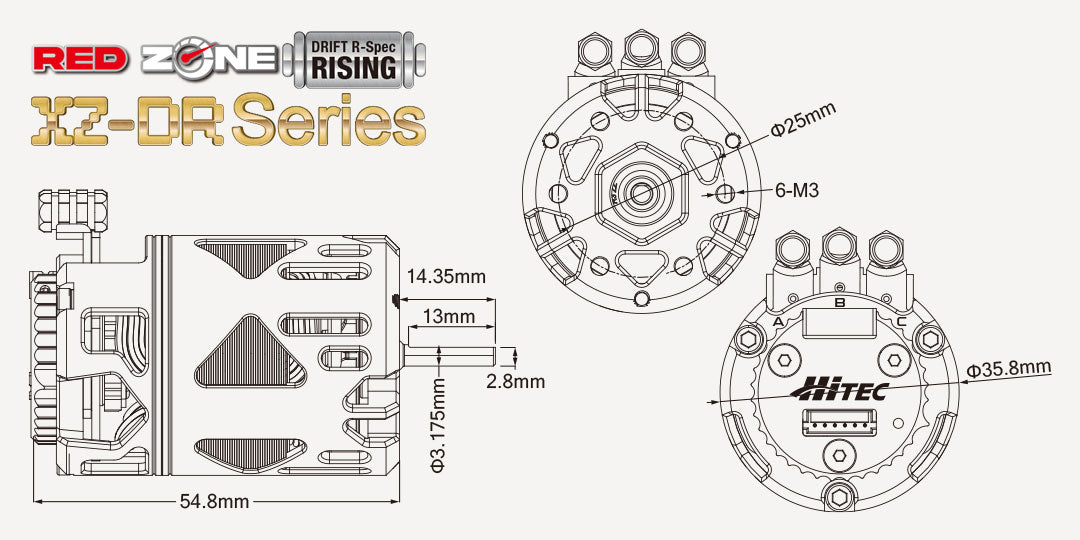

Rotor size (mm) ∅12.3×∅7.2×24.2 mm
Motor size (mm) ∅35.8×54.8 mm
Shaft diameter (mm) ∅3.175 mm
Weight (g) 168 g
