Wrap-Up Next 0259-FD GX Front Knuckle Ver.3 Silver For NERVIS VX-Dock

This item will be re-leased.

ETA: End of March 2019

Wrap-Up Next

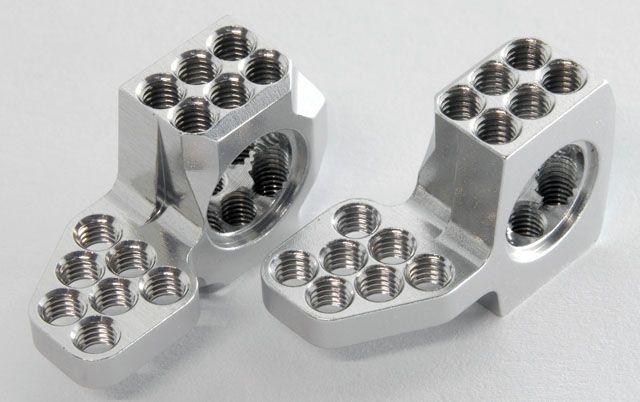

0259-FD GX Front Knuckle Ver.3 Silver For NERVIS VX-Dock



Bearing less design made the most reasonable pricing possible. Changes we made form GX front knuckle Ver. 2 Applied a new asymmetric design to the knuckles. Offsetting the steering rod attachment increased the range of pivot ball heights, which made accurate bump steering adjustments possible. Changed the steering rod attachment back to the version 1 shape. Screw threads spec allows the pivot ball to be locked without using a nut. Knuckle stopper is also easily attached. Enhanced axle shaft center accuracy and bearing fittings. The bearings can be purchased separately or just use what you have. Now available in more reasonable price for your convenience. Hypothetical kingpin angle 6.32° (The angle changes according to the ball height.) Standard steering rod position. (Can be changed depending on the setting/chassis preferences.) The distance between the holes is 3.2mm for both trail and kind pin angle. The trail amount changes according to the caster angle amount. Axle shaft not included. 0079-FD RWD smart axle shaft is highly recommended.
