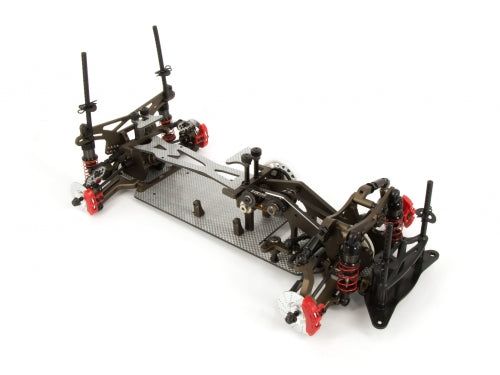

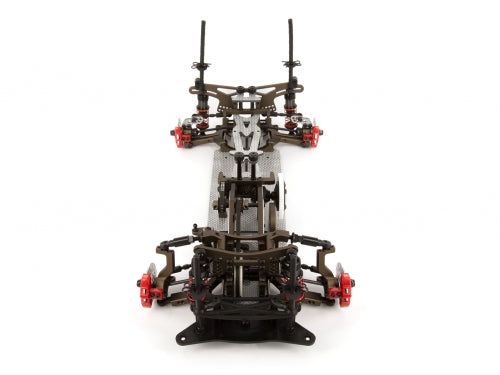

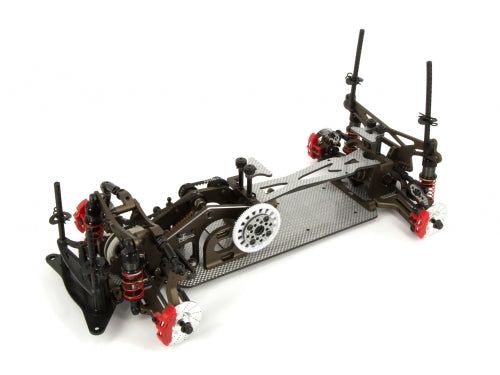

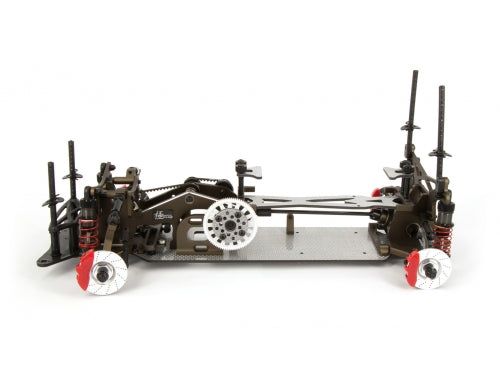

D-LIKE DL505 Re-R HYBRID ver.Bronze with Silver Chassis

DL505 Re-R HYBRID ver.Bronze with Silver Chassis

Better quality and high precision drift machine. D-Like has modified from factroy line in order to get better RC drift machine!



• Main Gear Shaft Housing has been added
  • Capable of high power / RPM
  • Stable running and better feeling
• Front Knuckle has been minor changed
  • Added Bearing Service Hole
• Spur Gear Holder attachment screw size has been changed
  • M3 Screws > M4 Screws
  • Improved drive transmission
• Added Center Drive Shaft Joint Protector
  • Improved drive transmission efficiency



D-Like Re-R HYBRID is designed for people who like to Drift (whether for real drifting or RC)!! Real drift action and control feeling!

D-Like RE-R design Front Midship Layout. Rear action is like FR Drift Car! Rear Traction can be controlled by acceleration and shat drive! Front end is belt driven for natural feeling! By changing pulleys you can easily change F&R Ratio.

Hopped up with Aluminium! Bling Bling!
Aluminium Parts include, F&R Lower Arm, F&R Knuckle, F&R Damper Stay, Rear Solid Axle, Front One Way, F&R Bulkhead, Steering Unit, Servo Mount, Spur Gear Holder, Battery Mount, Front Upper Arm, Front Upper Sus Mount!!

Front One Way

Full Ball Bearing

Adjustable Oil Damper

F&R Universal Shaft

Adjustable Turnbuckle

High Rigid Silver Carbon Chassis

Standard Ratio: 1:1.58

Battery position can be changed according to your set up.

Include Aluminium Oil Dampers specially designed for RE-R HYBRID!

By calculating Front, Rear, Left and Right Balance, Gravity, speically designed suspension and non-matching (F&R) Suspension Block will create "Real" control and action!!

Newly designed front knuckle & Upper Arm

Center Motor Layout.

Following items are not included

Radio Gears, ESC, Motor, Servo, Battery, Charger, Body, Wheels / Tires
