Futaba GYC480 Gyro

PO closed

~~~

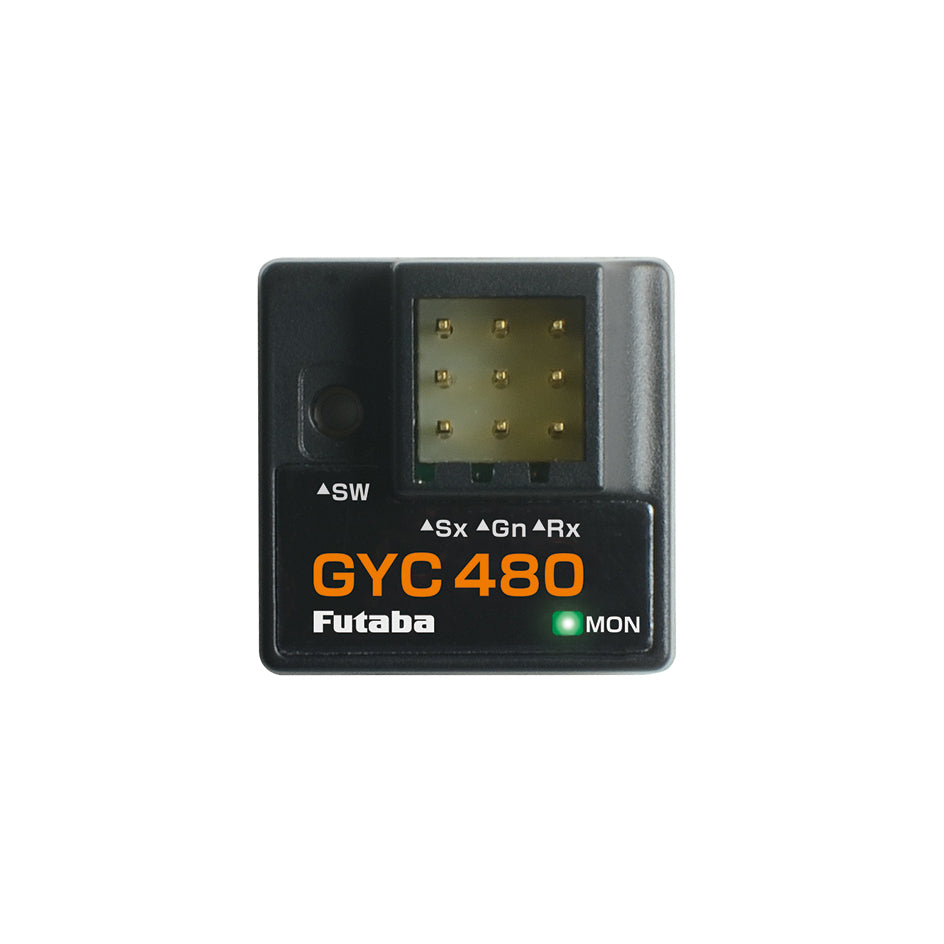

GYC480
Equipped with UR Mode for Direct Control Feel Even Through Gyro
The classic grip gyro, GYC470, has been upgraded with UR Mode and transformed into the GYC480!!

Product Features
(Sensor: Integrated Rate Gyro)

• Angular Velocity Detection Method: Vibration Gyro Sensor

• Operating Voltage: DC 4.0 V to 8.4 V

• Current Consumption: 30mA (when servo is not connected)

• Operating Temperature: -10°C to +45°C

• Dimensions: 20.7 x 20.7 x 11.0mm (excluding protrusions)

• Weight: 3.7g

• Functions: Monitor LED, S.BUS/S.BUS2 Compatible

Functions

• Compatible with F-4G's UR/SR Mode Servo for high-speed response systems.

• Remote Gain Function: Adjust gyro sensitivity directly from the transmitter. (Requires a transmitter/receiver capable of adjusting 3CH steering angle with 3CH or more.)

• RC Car-Specific Settings: Combines UR Mode responsiveness with reduced road surface interference for improved straight-line and cornering performance, helping you achieve faster lap times.

• Ultra-Compact and Lightweight: Achieved through high-density mounting technology.

• S.BUS System Compatibility (Can also be used without S.BUS): Can be connected via S.BUS when paired with an S.BUS receiver.

• Digital Servo Exclusive: Designed for Futaba HPS/BLS servos and digital servos only. Not compatible with analog servos.

• Normal / AVCS Mode

• High-Speed Response Mode

• Turn-In Adjust

• Gyro Curve Adjust

• Left/Right Endpoint Adjust

• EXP Rate Adjust

• Stick Priority Mode Adjust

• Wireless Adjustment Function Compatibility
  Wireless settings are only available with the F-4G system on T10PX, T6PV, R404SBS, and R404SBS-E.
  A software update is required for T10PX, T6PV, R404SBS, and R404SBS-E to enable wireless settings for GYC480 and GYD560.
