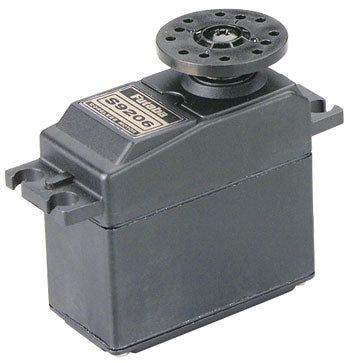

Futaba S9206 High Torque Servo

Futaba S9206

OSRD-1073 One Way Unit

Coreless Motor, High-Torque, Metal Gear, Dust and Water Resistant

Rating:
Speed: 0.19 sec / 60 deg (at 4.8V)
Torque: 131.9 oz-in (9.5 kg -cm) (at 4.8V)
Size: 1.59 x 0.79 x 1.48 in (40.5 x 20 x 37.5mm)

Precaution:
Futaba FP-S9206 servo is specially designed for high torque and high-speed, therefore, very large current runs especially at starting, for use this servo utmost effectively, please read the following points of instruction:


1. Use NICAD battery (less characteristics when dry-batery use)
2. When use the battery fail safe function systems, it has more higher cut-off voltage setting, this will be a reason of shorter operation time.
3. When installing servo, check pushrod no tbe touch or bend although maximum operation of servo, if unnatural or excessive power to servo, consumption of power will increase due to high torque , decrease life of electric motor and battery last in shorter time also.
