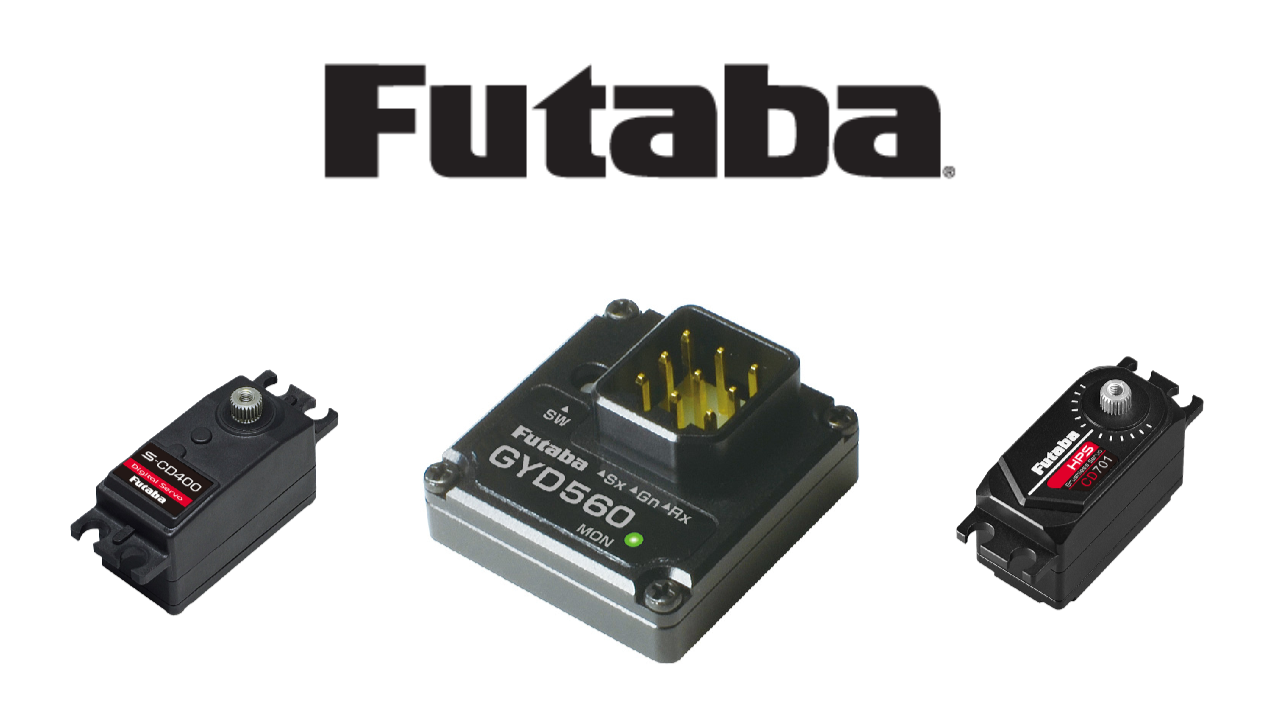

Futaba GYD560 Gyro
Smoother operation with UR mode compatibility
The GYD550, the No.1 drift gyro, has been upgraded with UR mode!
Product Features
(Integrated Sensor Gyro)
-
Angular Velocity Detection Method: Vibration gyro sensor
-
Operating Voltage: DC 3.5 V to 8.4 V
-
Current Consumption: 30mA (when servo is not connected)
-
Operating Temperature: -10°C to +45°C
-
Dimensions: 20.7 x 21.7 x 10.6mm (excluding protrusions)
-
Weight: 5.4 g
-
Functions: Monitor LED, S.BUS/S.BUS2 compatible
Key Functions
-
UR Mode Compatibility: Supports UR mode servos with the high-speed response system F-4G.
-
Remote Gain Function: Adjust gyro sensitivity directly from the transmitter (requires a transmitter/receiver capable of 3CH or higher with 3CH steering adjustment).
-
RC Drift Car-Specific Settings: Minimizes the impact of road surfaces and enhances drift performance with UR mode responsiveness.
-
Ultra-Compact and Lightweight: Achieved through high-density mounting technology.
-
Aluminum Case: Durable, high-rigidity, and lightweight aluminum case ensures accurate transmission of chassis movements to the internal sensor.
-
S.BUS System Compatibility: Can be used with S.BUS receivers for S.BUS connection (also compatible with non-S.BUS systems).
-
Digital Servo Exclusive: Designed for Futaba HPS/BLS servos and digital servos only (not compatible with analog servos).
Adjustment Features
-
Normal / AVCS Mode
-
High-Speed Response Mode
-
High-Gain Mode
-
Tail Slide Speed Adjustment
-
Gyro Curve Adjustment
-
Left/Right Endpoint Adjustment
-
Damper Adjustment
-
Stick Priority Mode Adjustment
-
Wireless Adjustment Function
Wireless adjustment is only available with the F-4G system on T10PX, T6PV, R404SBS, and R404SBS-E.
Software updates for T10PX, T6PV, R404SBS, and R404SBS-E are required to enable wireless adjustment for GYC480 and GYD560.
Futaba HPS-CD701 Drift Servo
1/10 Drift Car
The drift-specific servo HPS-CD700 has been upgraded with UR mode! The HPS-CD701 is a low-profile servo compatible with "UR mode," delivering incredible torque and low power consumption in a high-performance brushless design.
Product Features
-
Dimensions: 40.5 × 21.0 × 26.2 mm
-
Weight: 53 g
-
Speed:
-
0.045 sec / 60° (7.4 V)
-
0.055 sec / 60° (6.0 V)
-
-
Torque:
-
17.0 kgf·cm (7.4 V)
-
14.0 kgf·cm (6.0 V)
-
Key Features
-
UR/SR Mode Compatibility: Supports both UR and SR modes for versatile performance.
-
S.BUS System: Compatible with S.BUS for advanced control.
-
HPS Motor: High-performance brushless motor for exceptional efficiency and power.
-
Metal 1-3 Stage Gears: Durable and precise metal gears for reliable operation.
-
High-Strength Metal Final Stage Gear: Ensures robustness and longevity.
-
Aluminum Case: Lightweight yet sturdy aluminum casing for enhanced durability.
-
Black Cable: Sleek and durable wiring for a clean setup.
The Futaba HPS-CD701 is the ultimate choice for 1/10 scale drift cars, combining cutting-edge technology with unmatched performance for an exhilarating drift experience!
Futaba S-CD400 Drift Servo
1/10 Drift Car
The S-CD400 is a low-profile servo designed for 1/10 scale drift cars, compatible with both UR Mode and SR Mode for exceptional performance.
Product Features
-
Dimensions: 40.5 × 20.0 × 25.4 mm
-
Weight: 43 g
-
Speed:
-
0.08 sec / 60° (7.4 V)
-
0.10 sec / 60° (6.0 V)
-
-
Torque:
-
8.0 kgf·cm (7.4 V)
-
6.6 kgf·cm (6.0 V)
-
Key Features
-
UR Mode Compatibility: Optimized for UR mode performance.
-
S.BUS System: Supports S.BUS for advanced control and integration.
-
Coreless Motor: Delivers smooth and efficient operation.
-
Metal 2-4 Stage Gears: Ensures durability and precision.
-
Aluminum Final Stage Gear: Provides strength and reliability.
-
Resin Case: Lightweight and durable housing for enhanced performance.
The Futaba S-CD400 is the perfect choice for drift enthusiasts, offering a balance of speed, torque, and advanced features for an unparalleled drifting experience!
